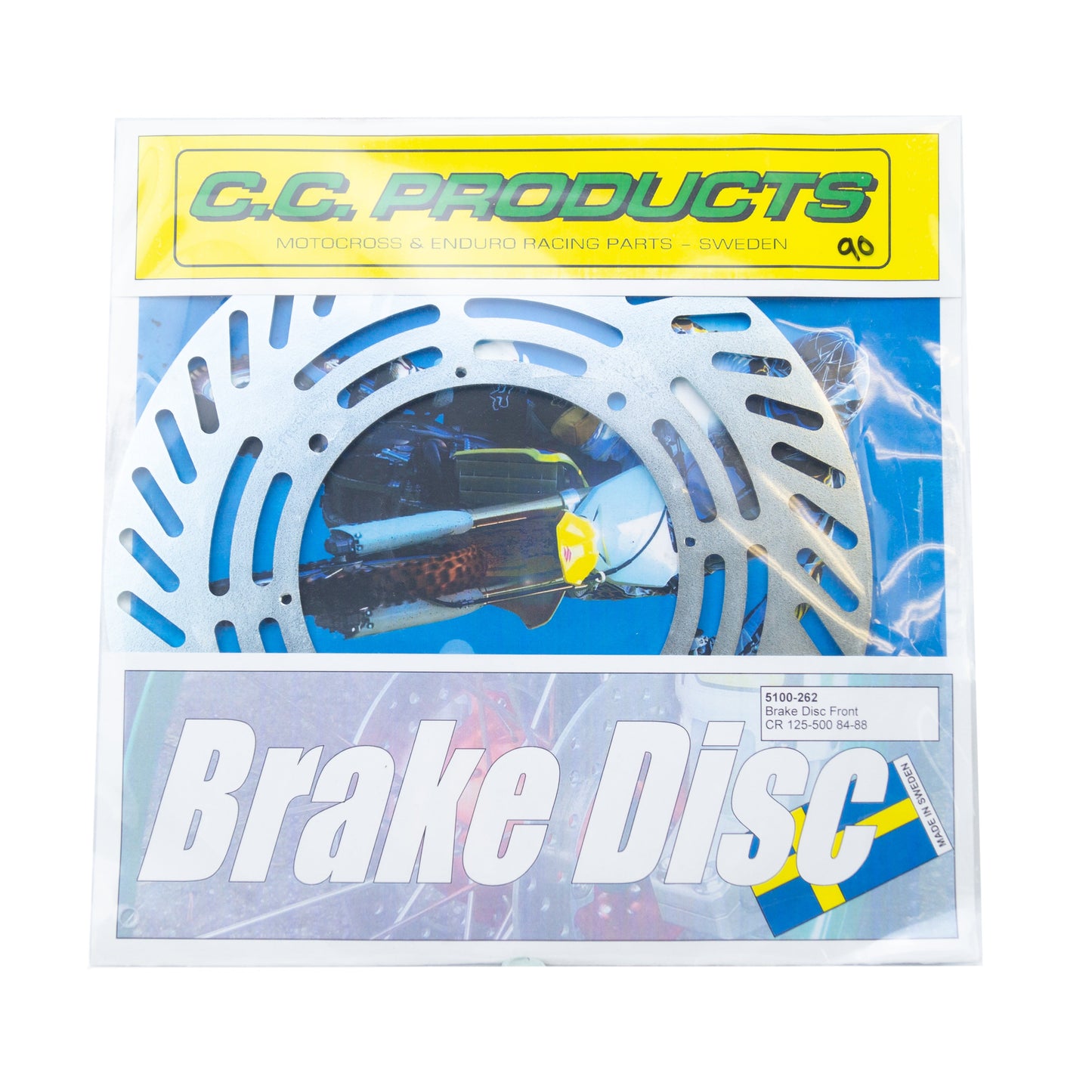

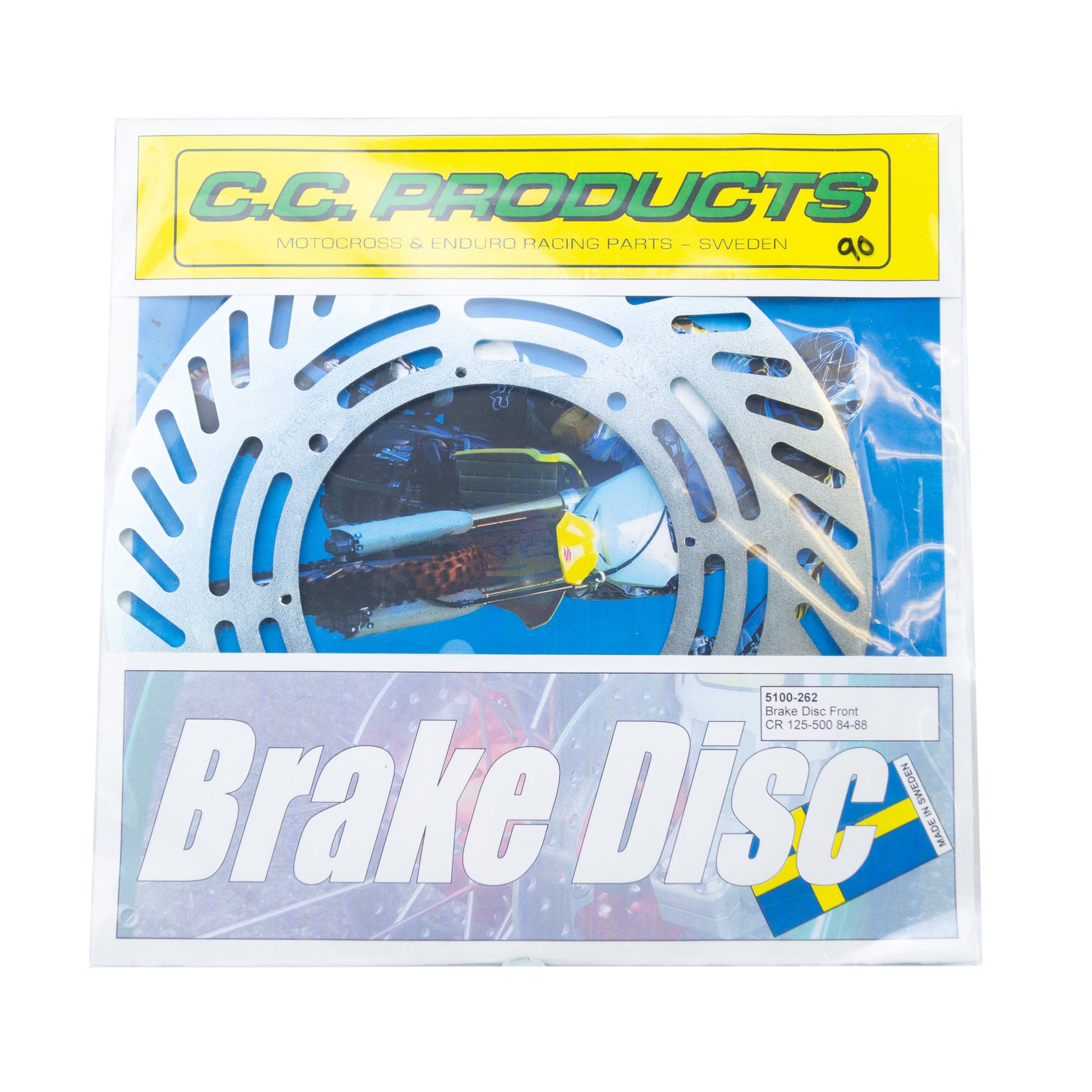

DISC BRAKE FRONT HONDA CR125/250/500 86-94, XR400 96-04, CC PRODUCTS

MPORTANT! Check carefully what wheel you have before ordering, there are 3 brake discs that look almost identical but are slightly different. The difference is the different size of bolt holes, symmetrical and asymmetrical bolt holes.

HONDA

CR 125 84-88

CR 250 84-88

CR 500 84-88

MEASUREMENTS

Outer diameter: 240 mm

Inner diameter: 118 mm

Thickness: 3 mm

Number of bolt holes: 4

Bolt hole diameter: 6,5 mm

Pitch: 134 mm

Countersink: None

CC Bolt that should be used: 1083-023

This brake disc have four M4 screw holes for OEM plastic cover.

OEM Article number brake disc: 45351-KZ1-771

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
