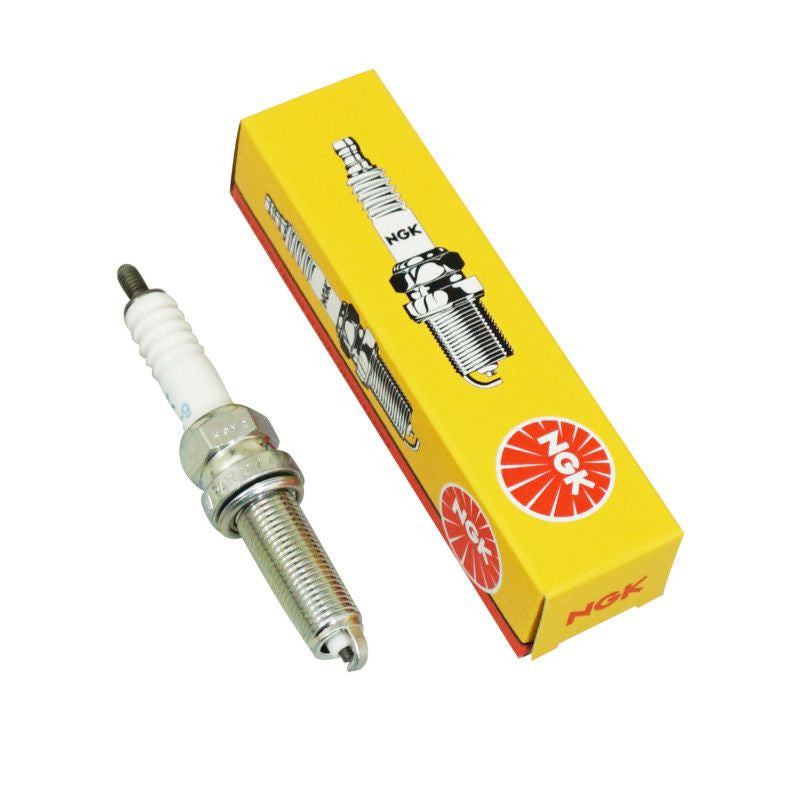

NGK SPARK PLUG LMAR6A-9 5946

NGK Spark Plug - LMAR6A9 / LMAR6A-9

Features:

• Wide heat range due to the use of copper wire instead of iron cores.
• Copper dissipates heat more quickly, cooling the electrode and insulator tip.
• Raised pre-ignition rating with high-conduction copper and long-nose insulator.
• Meets the requirements of high-performance engines.
• Triple-Gasket Sealing Process for improved durability.
• Sold individually.

Dimensions:

• Resistor type
• 9/16" Hex
• 1" Thread reach
• 10mm-1.00 Thread diameter
• Projecting insulator type
• Solid terminal nut

Specifications:

• Heat Range: 6
• Thread Size: 10 mm
• Type: Resistor
• Units Sold: Each
• Weight: 0.50 lbs

Compatible Suzuki Models:

• LT-A500X King Quad AXi 4x4: 2017, 2016, 2015
• LT-A500XC King Quad AXi 4x4 Camo: 2017, 2016, 2015
• LT-A500XP King Quad AXi 4x4 Power Steering: 2017, 2016, 2015
• LT-A500XP King Quad AXi 4x4 Power Steering Camo: 2017, 2016, 2015
• LT-A500XPZ King Quad AXi 4x4 Power Steering Special Edition: 2017, 2016
• LT-A750X King Quad AXi 4x4: 2017, 2016, 2015, 2014
• LT-A750XC King Quad AXi 4x4 Camo: 2017, 2016, 2015, 2014
• LT-A750XP King Quad AXi 4x4 Power Steering: 2017, 2016, 2015, 2014
• LT-A750XPC King Quad AXi 4x4 Power Steering Camo: 2017, 2016, 2015, 2014
• LT-A750XPZ King Quad 4x4 Power Steering Limited Edition: 2015, 2014
• LT-A750XPZ King Quad 4x4 Power Steering Special Edition: 2017, 2016
• LT-A750XZ King Quad AXi 4x4 Limited Edition: 2014

Compatible Yamaha Models:

• YFM550D Grizzly 550 4x4: 2014
• YFM550DH Grizzly 550 4x4 Hunter Edition: 2014
• YFM550FG Grizzly FI 4x4: 2013, 2012, 2011, 2010, 2009
• YFM550FGH Grizzly FI 4x4 Hunter Edition: 2013, 2012, 2011, 2010, 2009
• YFM550FGP Grizzly FI 4x4 EPS: 2013, 2012, 2011, 2010, 2009
• YFM550FGPH Grizzly FI 4x4 EPS Hunter Edition: 2013, 2012, 2011, 2010, 2009
• YFM550FGPSE Grizzly FI 4x4 EPS Special Edition: 2009
• YFM550P Grizzly 550 4x4 EPS: 2014
• YFM550PH Grizzly 550 4x4 EPS Hunter Edition: 2014
• YFM700FG Grizzly 700 FI 4x4: 2013, 2012, 2011, 2010, 2009
• YFM700FGH Grizzly 700 FI 4X4 Hunter Edition: 2013, 2012, 2011, 2010, 2009
• YFM700FGP Grizzly 700 FI 4x4 EPS: 2013, 2012, 2011, 2010, 2009
• YFM700FGPDU Grizzly 700 FI 4x4 EPS Ducks Unlimited Edition: 2009
• YFM700FGPH Grizzly 700 FI 4x4 EPS Hunter Edition: 2013, 2012, 2011, 2010, 2009
• YFM700FGPSE Grizzly 700 FI 4x4 EPS Special Edition: 2013, 2012, 2010, 2009
• YFM700FGPSP Grizzly 700 EPS Special Edition: 2012, 2011

Additional Information:

• Part No.: 37-LMAR6A-9
• Traditional Spark Plug with 10mm Thread Size, 26.5mm (1.04") Reach, 9/16" (14.3mm) Hex Size, Gasket Seat, Resistor, Projected Tip, Nickel Center Electrode, Studded Terminal Threads, .035" (0.9mm) Gap, and Heat Range 6.
• Note: Does not include terminal nut; if necessary, order part #067606-0051.

Key Features of NGK Traditional Plugs:

• Constructed for longer life and optimum performance.
• Corrugated ribs prevent flashover.
• Made with purest alumina silicate in the ceramic insulator for greater strength and better heat transfer.
• Copper cored and triple sealed to enhance heat removal and prevent interior leakage.

This spark plug ensures exceptional performance and durability for a wide range of Suzuki and Yamaha models.
