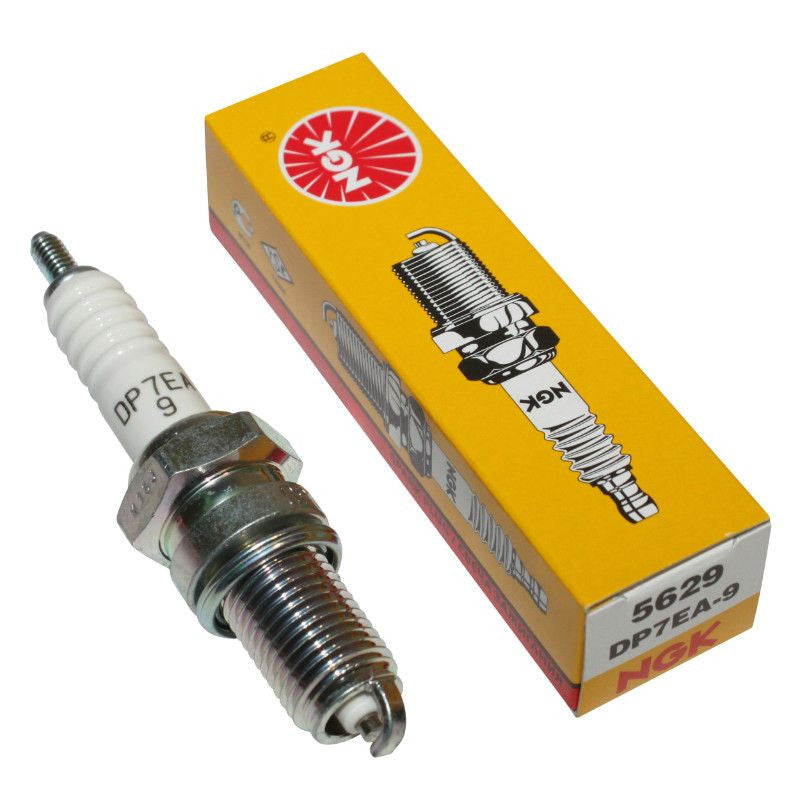

NGK SPARK PLUG DP7EA-9 5629

NGK Spark Plug - DP7EA9

Product Features:

• NGK’s wide heat range results from using copper wire instead of the iron cores found in many conventional plugs.
• Copper dissipates heat quicker, cooling the electrode and insulator tip.
• Raised pre-ignition rating with high-conduction copper and long nose insulator.
• Meets the requirements of high-performance engines.
• Sold individually.

Specifications:

• Heat Range: 7
• Thread Size: 12 mm
• Type: Non-Resistor
• Units: Each
• Weight: 0.25 lbs
• Alternate/OEM Part Numbers: 5629, DP7EA9

Compatible Vehicles:

Kawasaki Models:

• VN1500B Vulcan 88 SE: 1987, 1988, 1990
• VN1500C Vulcan L: 1996, 1997
• VN700A Vulcan: 1985
• VN750A Vulcan: 1986–2006

Suzuki Models:

• LT160 Quad Runner: 2003
• LT160 Quad Sport: 2004
• LT160E Quad Runner: 1991–1992
• LT250S Quad Sport: 1989–1990
• LT-F160 Quad Runner: 1991–2001

Part Number: 37-DP7EA-9

NGK Traditional Spark Plug Details

Key Features:

• Constructed for longer life and optimum performance.
• Corrugated ribs prevent flashover.
• NGK uses pure alumina silicate ceramic insulators, providing greater strength and better heat transfer.
• Copper core aids in heat removal and improves durability.
• Triple sealed to prevent interior leakage.

Plug Specifications:

• Thread Size: 12 mm
• Reach: 19 mm (3/4")
• Hex Size: 11/16" (18 mm)
• Seat Type: Gasket
• Type: Non-Resistor
• Terminal Type: Stud Threads
• Projected Tip: Yes
• Gap: .035" (0.9 mm)
• Heat Range: 7
• Note: Does not include terminal nut. If necessary, order part #067606-0051.

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
