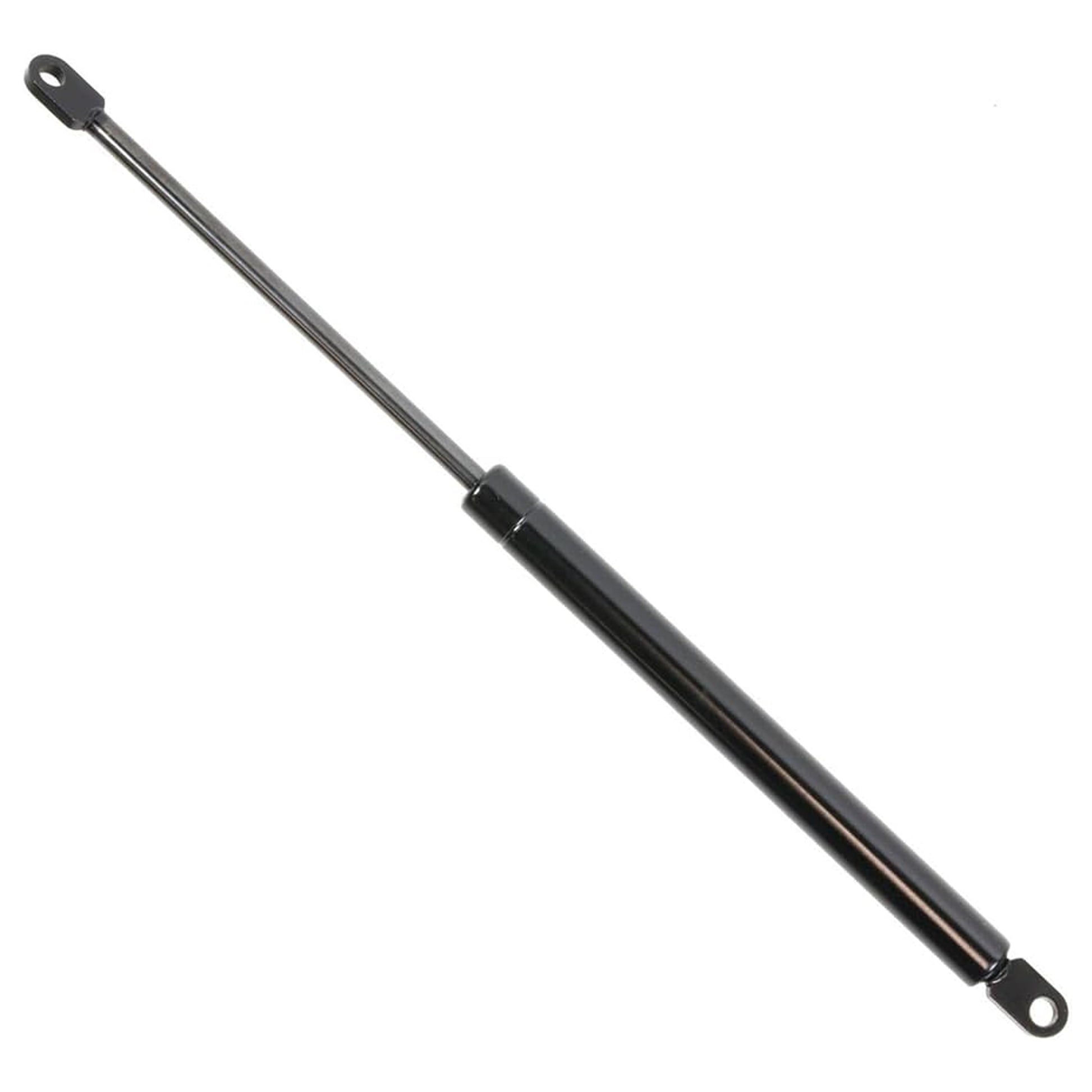

REAR BOOT DAMPER POLARIS SPORTSMAN 500/850 04-18, BRONCO AT-04901

POLARIS
ATP 330 4X4 2004-2005
ATP 500 4X4 2004-2005
SPORTSMAN X2 500 EFI 2006-2009
SPORTSMAN X2 550 2010-2014
SPORTSMAN 570 EFI UTE 2014-2017
SPORTSMAN 570 EFI X2 EPS � ALL 2015-2018
SPORTSMAN X2 700 EFI 2008
SPORTSMAN X2 800 EFI 2007-2009
SPORTSMAN X2 850 2011
BIG BOSS 6X6 2002
SPORTSMAN 6X6 2002-2008

SHOCK DUMP BOX. � BRONCO AT-04901 � � �

Exteneded Length (C to C) 392mm
Closed length. 238mm �
Stroke 153mm
Shaft Dia. 8mm �
Tube Dia. 18mm
Damper Force 26KGS
Top & Bottom Eyelet. OD. 8mm x Wide 12mm

S45C(shaft) + Zinc alloy (hook) + STKM 12C(tube) � � � � � � � � �
Nitrogen treatment(shaft) + Black coating (tube) � � � � � � � �

Cross Reference Numbers Only:
AT-04901 , � 7041301, 7041725, 7042268

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
