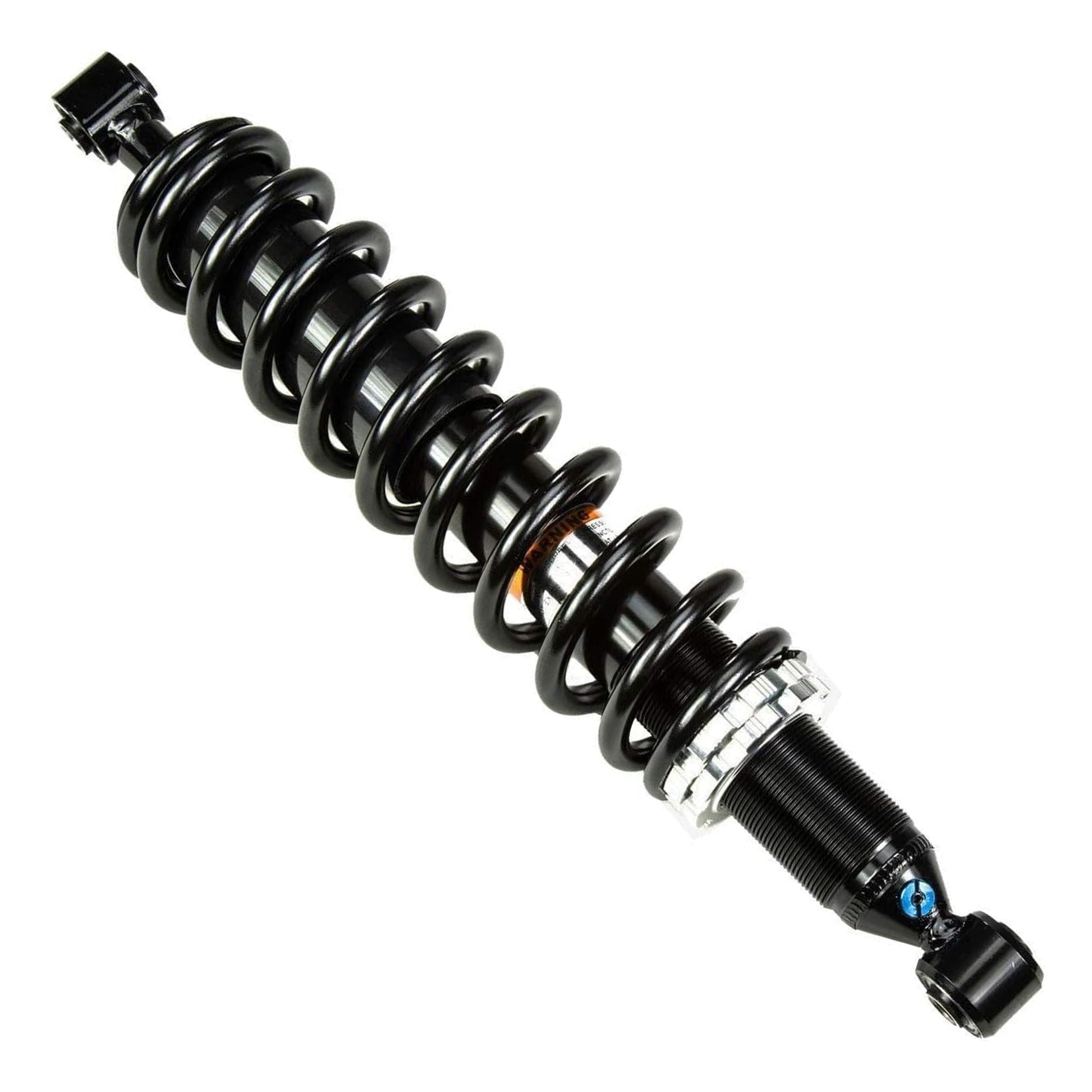

REAR SHOCK YAMAHA KODIAK 700 16-23, BRONCO AU-04460, 2SM-F2210-00

BRONCO HEAVY DUTY GAS SHOCKS

Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
10% stiffer springs provide a better ride and higher load capacity.
Works great on the front when installing a snow plow.
Smooth black color blends perfectly with any OEM ATV.
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
Sold individually – Includes one shock, with spring, and spring retainers.

FITMENT

• YAMAHA KODIAK 700 (2016-2020)

SPECIFICATIONS

• Position Top Hole I.D (mm): 12
• Top Eyelet Width (mm): 32
• Bottom Hole I.D (mm): 12
• Bottom Eyelet Width (mm): 30
• Tube O.D (mm): 38
• Stroke (mm): 80.6
• Spring O.D (mm): 71
• Spring Wire Diameter (mm): 9.5
• Spring Rate (lbs/inch): 218
• Spring Rate (kg/mm): 3.9
• Center to Center (mm): 405
• Center to Center (inches): 16

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
