FRONT SHOCK KAWASAKI MULE KAF620 94-23, BRONCO AU-04347, 45023-1006

KAWASAKI FITMENT:

• MULE 2500 (KAF620) 1994-00
• MULE 2510 4X4 (KAF620) 1994-00
• MULE 2520 Turf (KAF620) 1995-00
• MULE 3000 (KAF620) 2001-08
• MULE 3010 4x4 1993
• MULE 3010 4x4 (KAF620) 2001-08
• MULE 3010 DIESEL 4X4 (KAF950) 2003-07
• MULE 3010 TRANS4x4 (KAF620) 2005-06
• MULE 3020 (KAF620) 1993
• MULE 3020 (KAF620) 2001-02
• MULE 4000 (KAF620) 2009-20
• MULE 4010 4X4 (KAF620) 2009-20
• MULE 4010 4X4 SE (KAF620) 2016-18
• MULE 4010 DIESEL 4X4 (KAF950) 2009-13

�

SPECIFICATIONS �

• POSITION TOP HOLE I.D MM: M10 BOLTS X3

• TOP EYELET WIDTH MM: � M10 BOLTS X3 �
• BOTTOM HOLE I.D MM: NA

• BOTTOM EYELET WIDTH MM: NA

• TUBE O.D MM: 44
• STROKE MM: -

• SPRING OD MM: 93.5

• SPRING WIRE DIAMETER MM: 9.2

• SPRING RATE LBS/INCH: 179

• SPRING RATE KG/MM: 3.20

• CENTER TO CENTER MM: 426

• CENTER TO CENTER IN: 16 7/9


�

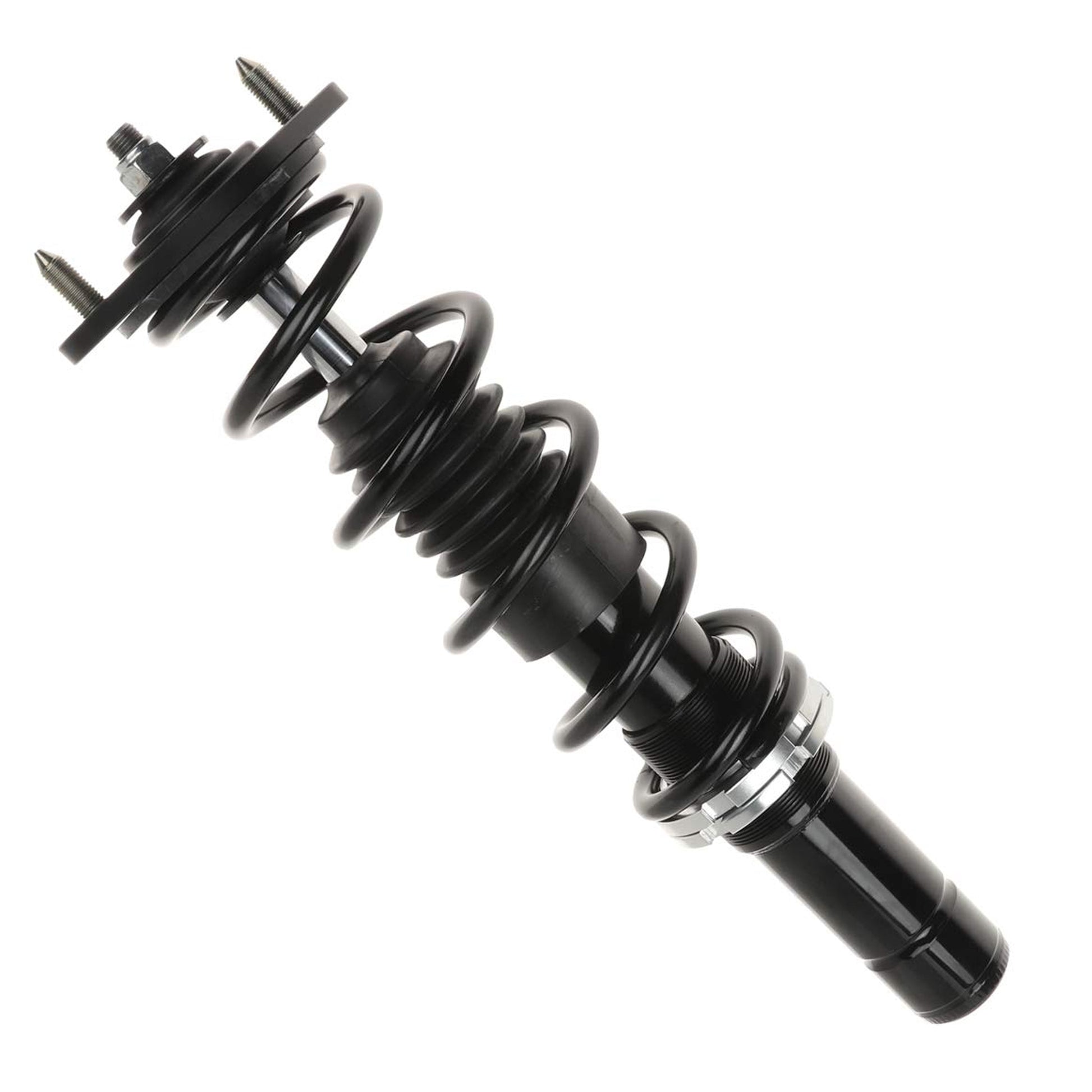

BRONCO FRONT SHOCK AU-04347 (Complete Strut Assembly)

Cross Refrence Numbers ONLY: 45023-1006

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
