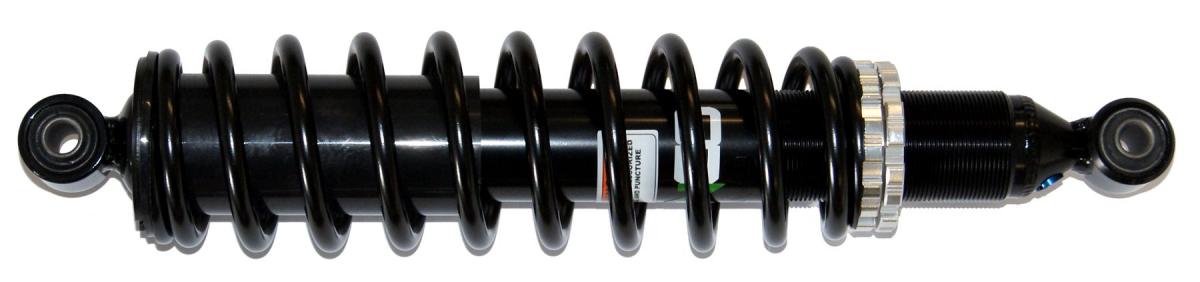

FRONT SHOCK YAMAHA YFM350 BRUIN 05-06, GRIZZLY 07-11, BRONCO AU-04318

FITMENT:

• BRUIN 350 2WD/4WD 2005-06
• GRIZZLY 350 2WD/4WD 2007-11
• GRIZZLY 350 IRS 2007
• GRIZZLY 350 IRS 2008-11
• GRIZZLY 400 2008

�

SPECIFICATIONS �

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32

• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32

• TUBE O.D MM: 38
• STROKE MM: 98.5

• SPRING OD MM: 73

• SPRING WIRE DIAMETER MM: 7 4/5

• SPRING RATE LBS/INCH: 92

• SPRING RATE KG/MM: 1.65

• CENTER TO CENTER MM: 360

• CENTER TO CENTER IN: 14 1/6

�

Part No. 29-5783
Cross reference numbers ONLY. AU-04318, 5UH-F3350-01-00,

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
