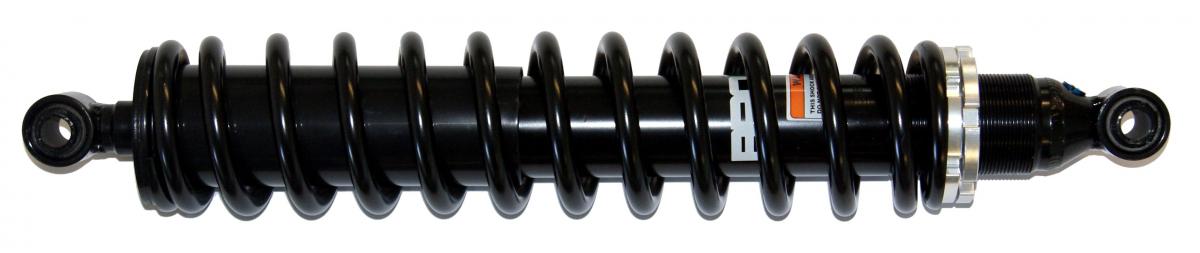

SHOCK ATV REAR PRAIRIE BRONCO

BRONCO HEAVY DUTY GAS SHOCKS

Description:

• Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
• 10% stiffer springs provide a better ride and higher load capacity.
• Works great on the front when installing a snow plow.
• Smooth black color blends perfectly with any OEM ATV.
• Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
• Sold individually - Includes one shock, with spring, and spring retainers.

FITMENT:

• KVF300 PRAIRIE 300 4X4 1999-2002
• KVF360 PRAIRIE 360 4X4 2003-2012
• KVF400 PRAIRIE 400 4X4 1999-2002

SPECIFICATIONS:

• POSITION TOP HOLE I.D MM: 12
• TOP EYELET WIDTH MM: 32
• BOTTOM HOLE I.D MM: 12
• BOTTOM EYELET WIDTH MM: 32
• TUBE O.D MM: 42
• STROKE MM: 124
• SPRING OD MM: 70
• SPRING WIRE DIAMETER MM: 9.5
• SPRING RATE LBS/INCH: -
• SPRING RATE KG/MM: -
• CENTER TO CENTER MM: 438
• CENTER TO CENTER IN: 17 1/4

BRONCO REF: AU-04413 OEM REF: 45014-1624, 45014-1709, 45014-1838

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
