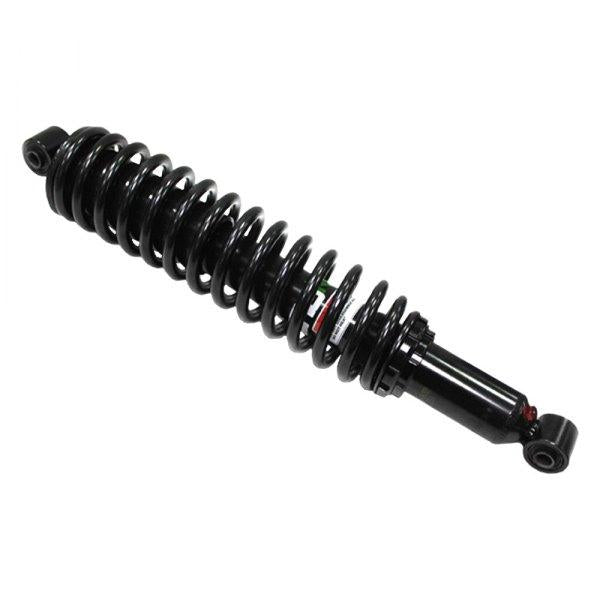

FRONT SHOCK 402mm, YAMAHA YXR660 Rhino 04-07, AU-04309, BRONCO

FITMENT:

• YAMAHA RHINO 450 2006-2009
• YAMAHA RHINO 660 2004-2007 9 (STD SUSPENSION ONLY, NOT SPORT)
• YAMAHA RHINO 700 2008-2013


�

SPECIFICATIONS �

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32

• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32

• TUBE O.D MM: 39
• STROKE MM: 93

• SPRING OD MM: 74

• SPRING WIRE DIAMETER MM: 9

• SPRING RATE LBS/INCH: 238

• SPRING RATE KG/MM: 4.25

• CENTER TO CENTER MM: 402

• CENTER TO CENTER IN: 15 5/6


�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
