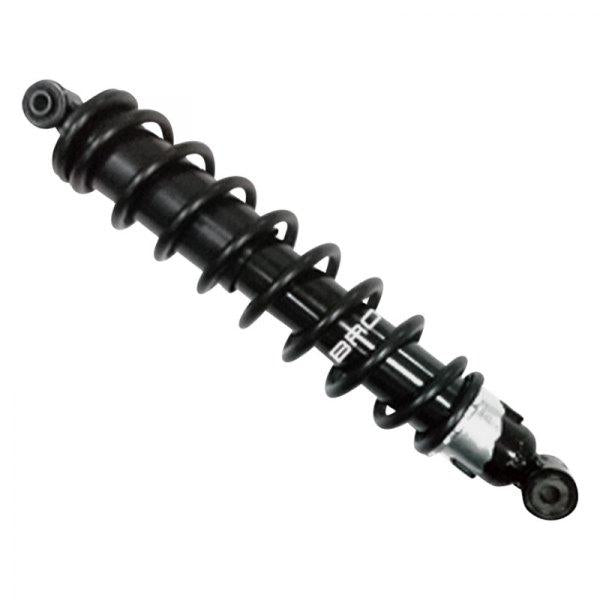

SHOCK FRONT BRUTE FORCE 45014-0203, 45014-0075, KVF750

FITMENT:

• KAWASAKI KVF650i BRUTE FORCE 4X4 (NON PIGGY BACK) 2006-2013
• KAWASAKI KVF750i BRUTE FORCE 4X4 2005-2020
• KAWASAKI KVF750 BRUTE FORCE 4X4 EPS 2012-2020


�

SPECIFICATIONS �

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32

• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 30

• TUBE O.D MM: 38
• STROKE MM: 64.8

• SPRING OD MM: 73

• SPRING WIRE DIAMETER MM: 9

• SPRING RATE LBS/INCH: -

• SPRING RATE KG/MM: -

• CENTER TO CENTER MM: 360

• CENTER TO CENTER IN: 14 1/6


�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
