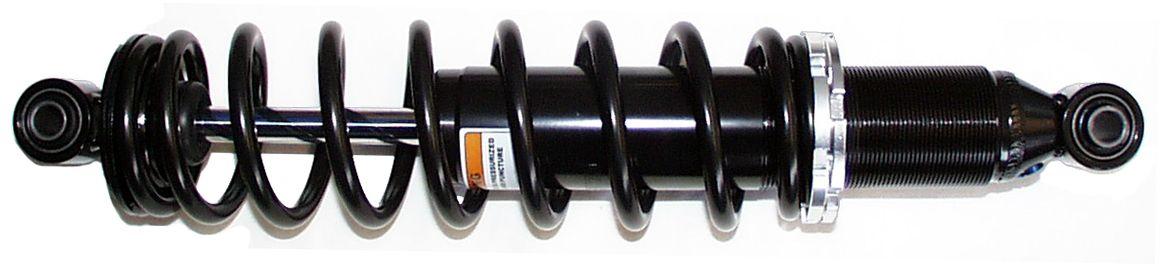

BRONCO SHOCK ATV FRONT For Kodiak 400 2003-2005 - Kodiak 450 2003-2004

FITMENT:

• Yamaha Kodiak 400 - 2003 2004 2005
  Yamaha Kodiak 450 - 2003 2004

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32
• TUBE O.D MM: 39
• STROKE MM: 98
• SPRING OD MM: 74.5
• SPRING WIRE DIAMETER MM: 7.5
• SPRING RATE LBS/INCH: -
• SPRING RATE KG/MM: -
• CENTER TO CENTER MM: 362
• CENTER TO CENTER IN: 14 1/4

Part No. 29-551.EA
BRONCO Heavy Duty ATV Front Shock - AU-04303
Cross reference numbers ONLY.

5ND-F3350-00-00








Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
