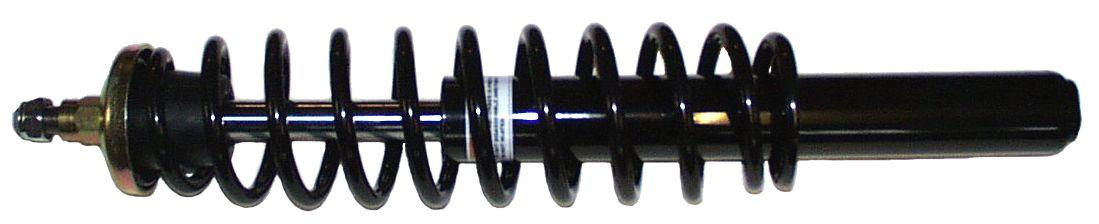

BRONCO SHOCK ATV FRONT POLARIS

ATV Front Shock

Compatible Models:

Polaris

• 250 2X4, 4X4, 6X6 1993
• 300 2X4, 4X4 1994-95
• 300 2X4, 4X4 1994-95
• 300 6X6 1994
• 350L 2X4, 4X4, 6X6 1993
• 400 2X4, 4X4, 6X6 1994-96
• BIG BOSS 250 6X6 1991-92
• BIG BOSS 350 6X6 1993

Specifications:

• POSITION TOP HOLE I.D MM: 12.5 X 36 THREADED ROD
• TOP EYELET WIDTH MM: 12.5 X 36 THREADED ROD
• BOTTOM HOLE I.D MM: NA
• BOTTOM EYELET WIDTH MM: NA
• TUBE O.D MM: 38
• STROKE MM: 136.6
• SPRING OD MM: 80
• SPRING WIRE DIAMETER MM: 8
• SPRING RATE LBS/INCH: 62
• SPRING RATE KG/MM: 1.10
• CENTRE TO CENTRE MM: 486
• CENTRE TO CENTRE IN: 19 1/7

Cross Reference Numbers:

• BRONCO REF: AU-04300
• KIMPEX/OEM REF: 273300/100589
• AU-04300 REPLACES OEM # 7041451, 7041304, 7041211.
• INCLUDES POLARIS STRUT KIT # 273300.

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
