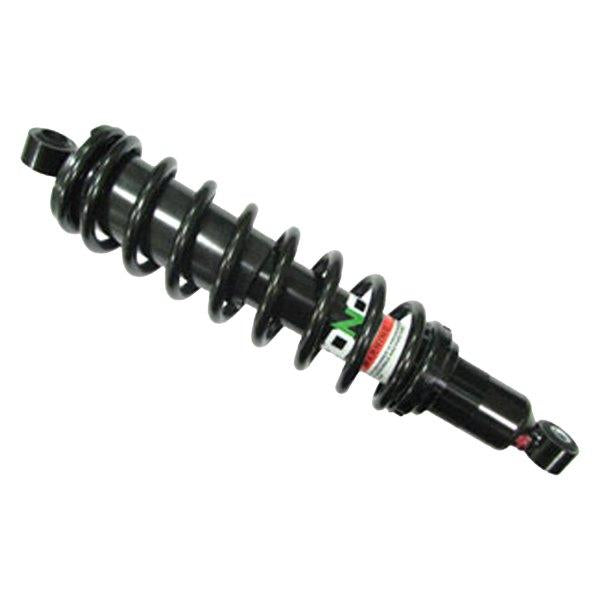

SHOCK BRONCO ATV REAR

Bronco gas shocks offer long term consistent performance over stock oil only damped shocks
10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually - Includes one shock, with spring, and spring retainers

FITMENT

• 1995 TRX400FW A REAR SHOCK ABSORBER
• 1995 TRX400FW AN REAR SHOCK ABSORBER
• 1996 TRX400FW A REAR SHOCK ABSORBER
• 1996 TRX400FW AN REAR SHOCK ABSORBER
• 1997 TRX400FW A REAR SHOCK ABSORBER
• 1997 TRX400FW AN REAR SHOCK ABSORBER
• 1998 TRX400FW A REAR SHOCK ABSORBER
• 1998 TRX400FW AC REAR SHOCK ABSORBER
• 1999 TRX400FW A REAR SHOCK ABSORBER

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 16
• TOP EYELET WIDTH MM: 20
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 21
• TUBE O.D MM: 38
• STROKE MM: 65
• SPRING OD MM: 72
• SPRING WIRE DIAMETER MM: 8.5
• SPRING RATE LBS/INCH: 221
• SPRING RATE KG/MM: 3.95
• CENTER TO CENTER MM: 347
• CENTER TO CENTER IN: 13 2/3

Part No. 29-533
BRONCO REF; AU-04252
OEM REF; 52400-HM7-003
WILL FIT THE FOLLOWING;
TRX400FW FOREMAN 1995-03

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
