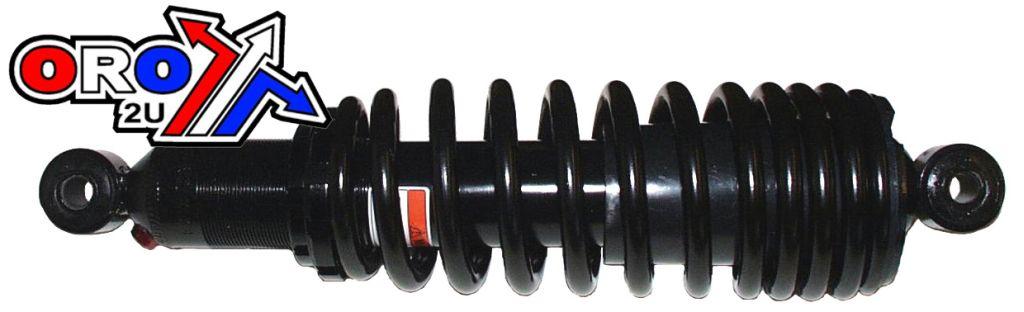

FRONT ATV SHOCK ABSORBER 297mm, Honda TRX400FW 95-03, 51400-HM7-003

HONDA
TRX400FW FOREMAN 1995-2003

FRONT SHOCK BRONCO AU-04202 HEAVY DUTY DESIGN, COME STANDARD WITH 10% STIFFER SPRINGS.

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 21
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 21
• TUBE O.D MM: 38
• STROKE MM:60
• SPRING OD MM: 73
• SPRING WIRE DIAMETER MM: 8.5
• SPRING RATE LBS/INCH: 112
• SPRING RATE KG/MM: 2.00
• CENTER TO CENTER MM: 297
• CENTER TO CENTER IN: 11 2/3

Part No. 29-530

Cross reference numbers ONLY.
51400-HM7-003,

�

1995 TRX400FW A FRONT SHOCK ABSORBER
1995 TRX400FW AN FRONT SHOCK ABSORBER
1996 TRX400FW A FRONT SHOCK ABSORBER
1996 TRX400FW AN FRONT SHOCK ABSORBER

�

�

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
