CARB DIAPHRAGM YAM YFM660 GRIZZLY 02-08,YXR660 04-07 K&L 18-8869, 5KM-24411-00

YAMAHA
YFM660F Grizzly-All � 2002-2008,
YXR660 Rhino � 2004-2007,

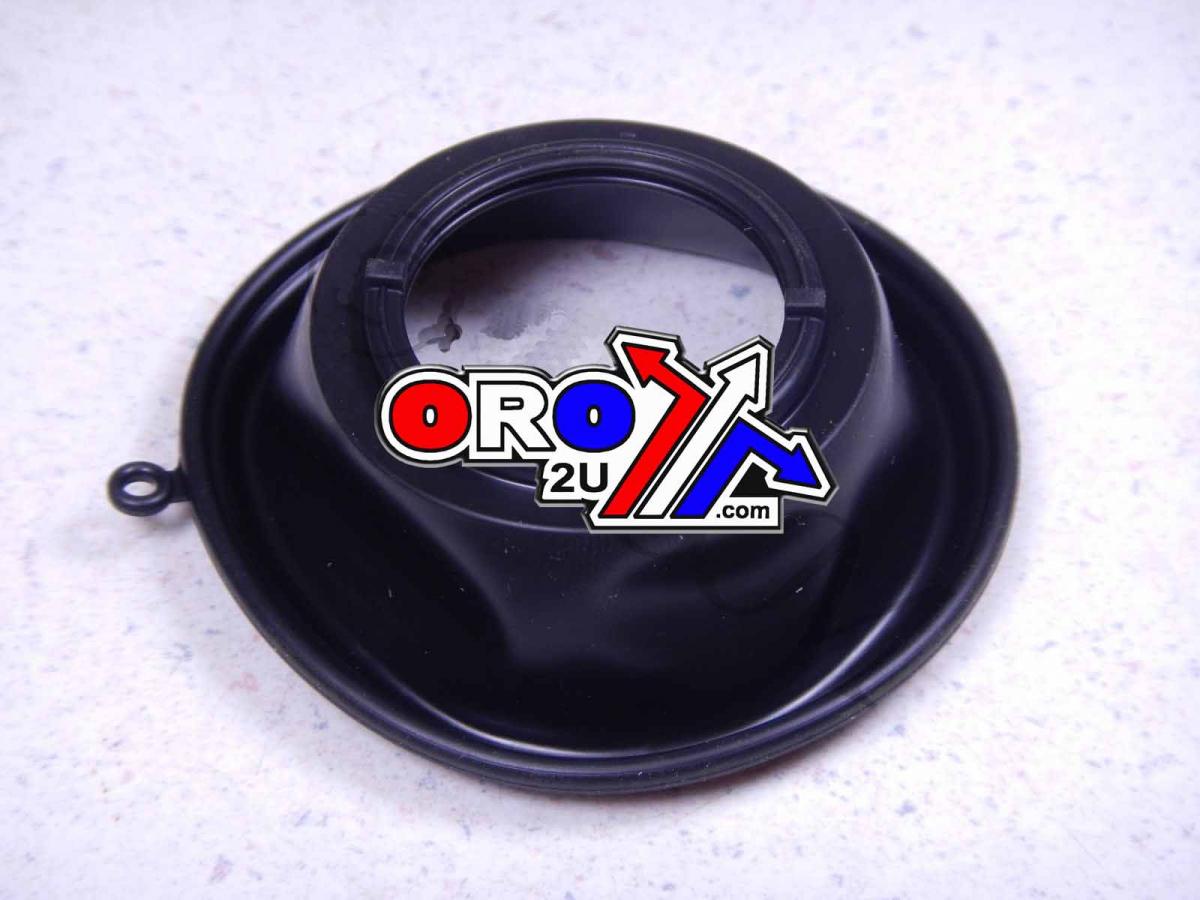

CARBURETOR SLIDE DIAPHRAGM K&L Supply 18-8869
(top diaphragm rubber only, no slide body)

- Made in Japan.
- Meets or exceeds OEM quality.
- Direct oem replacement.
- K&L Supply products are a high quality replacement part and carries our guarantee of your satisfaction.

Part No. 27-2864

Cross reference numbers ONLY.
5KM-24411-00-00,

Assemblies where 5KM-24411-00-00 is used
2002 GRIZZLY 660 (YFM660FP) - Carburetor
2002 GRIZZLY 660 METALLIC SILVER (YFM660FPS) - Carburetor
2002 GRIZZLY HUNTER EDITION (YFM660FHP) - Carburetor
2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER (YFM660FHRH) - Carburetor
2003 GRIZZLY 660 (YFM660FR) - Carburetor
2003 GRIZZLY 660 4X4 METALLIC TITANIUM (YFM660FRGY) - Carburetor
2003 GRIZZLY 660 WETLANDS HUNTER EDITION (YFM660FHR) - Carburetor
2004 GRIZZLY 660 (YFM660FS) - Carburetor
2004 GRIZZLY 660 AUTO 4X4 WETLAND (YFM660FHSW) - Carburetor
2004 GRIZZLY 660 AUTO 4X4 WETLAND (YFM660FLES) - Carburetor
2004 GRIZZLY 660 HARDWOODS HUNTER CAMO (YFM660FHS) - Carburetor
2004 RHINO 660 (YXR660FAS) - Carburetor
2004 RHINO HARDWOODS CAMO (YXR660FAHS) - Carburetor
2005 GRIZZLY 660 (YFM66FAT) - Carburetor
2005 GRIZZLY 660 HUNTER (YFM66FAHT) - Carburetor
2005 GRIZZLY 660 HUNTER WETLAND (YFM66FAHWT) - Carburetor
2005 GRIZZLY 660 SE (YFM66FASET) - Carburetor
2005 RHINO (YXR660FAT) - Carburetor
2005 RHINO HUNTER (YXR660FAHT) - Carburetor
2006 GRIZZLY 660 DUCKS UNLIMITED EDITION (YFM66FAHDV) - Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS (YFM66FABGG) - Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS (YFM66FABGH) - Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS (YFM66FAV) - Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS HD CAMO (YFM66FAHV) - Carburetor
2006 GRIZZLY 660 SPECIAL EDITION (YFM66FASEV) - Carburetor
2006 RHINO 660 4WD (YXR66FAVGR) - Carburetor
2006 RHINO 660 4WD EXPLORING EDITION - Hunter Green (YXR66FAEXG) - Carburetor
2006 RHINO 660 4WD EXPLORING EDITION Hardwoods HD Camo (YXR66FAEXH) - Carburetor
2006 RHINO 660 4WD HUNTER (YXR66FAHV) - Carburetor
2006 RHINO 660 4WD SPECIAL EDITION (YXR66FASEV) - Carburetor
2007 GRIZZLY 660 (YFM66FGW) - Carburetor
2007 GRIZZLY HUNTER (YFM66FGHW) - Carburetor
2007 RHINO 660 (YXR66FW) - Carburetor
2007 RHINO 660 4WD EXPLORING EDITION - HUNTER GREEN (YXR66FEXW) - Carburetor
2007 RHINO 660 4WD SPECIAL EDITION (YXR66FSEW) - Carburetor
2007 RHINO 660 4WD SPORT EDITION (YXR66FSPW) - Carburetor
2007 RHINO 660 DUCKS UNLIMITED EDITION (YXR66FDUW) - Carburetor
2007 RHINO 660 HUNTER - HARDWOODS HD CAMO (YXR66FHW) - Carburetor
2008 GRIZZLY 660 (YFM66FGXGR) - Carburetor
2008 GRIZZLY 660 (YFM66FGXL) - Carburetor
2008 GRIZZLY 660 (YFM66FGXR) - Carburetor
2008 GRIZZLY 660 HUNTER (YFM66FGHX) - Carburetor

�

�

2002 GRIZZLY 600 METALLIC SILVER - YFM660FPS CARBURETOR
2002 GRIZZLY HUNTER EDITION - YFM660FHP CARBURETOR
2002 YFM660FP CARBURETOR

2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER - YFM660FR-H CARBURETOR
2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER EDITION - YFM660FHR-HD CARBURETOR
2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER EDITION - YFM660FHRH CARBURETOR

2003 GRIZZLY 660 - YFM660FR CARBURETOR
2003 GRIZZLY 660 4X4 METALLIC TITANIUM - YFM660FRGY CARBURETOR
2003 GRIZZLY 660 4X4 WETLANDS HUNTER EDITION - YFM660FHR CARBURETOR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
