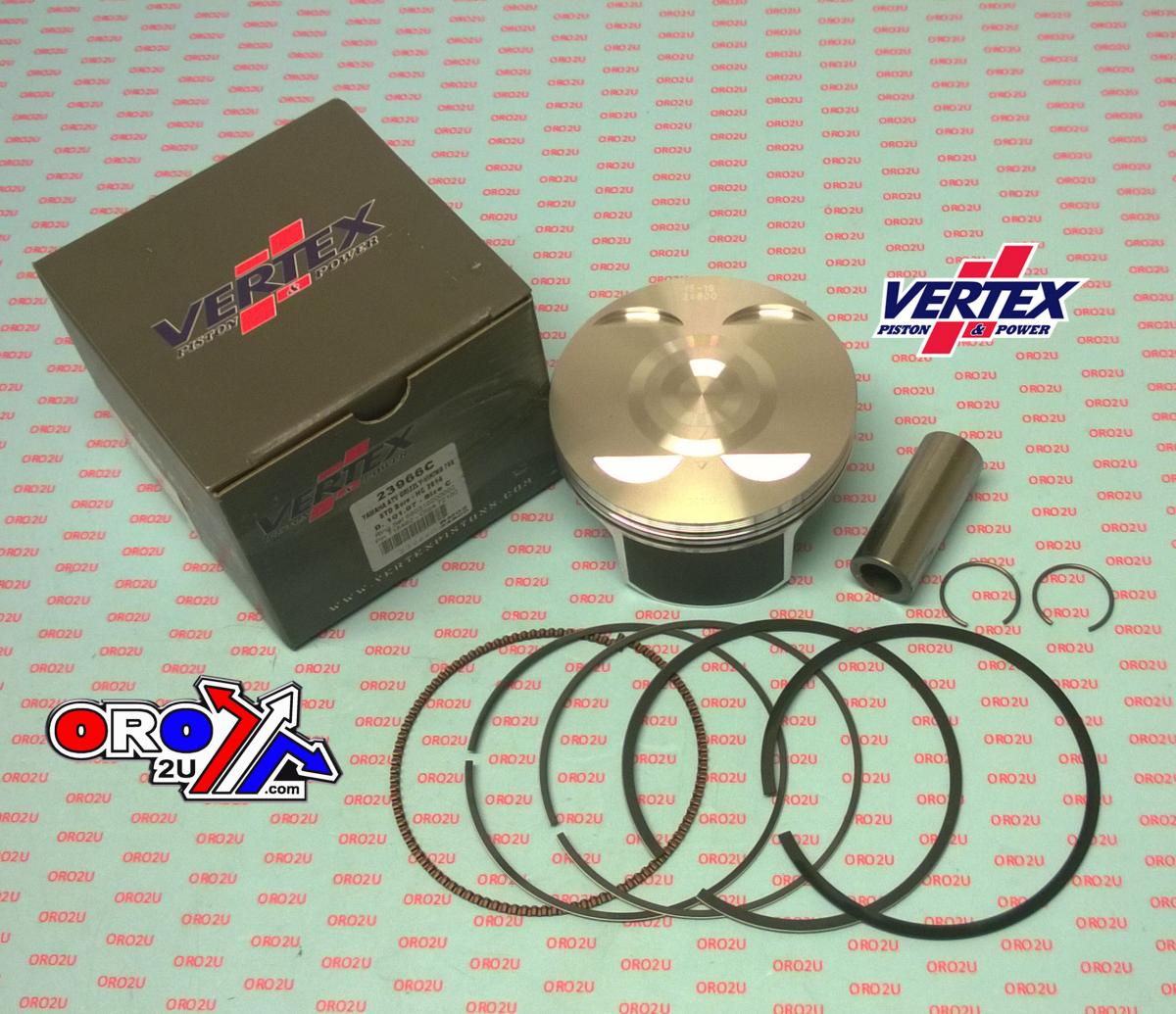

PISTON KIT VERTEX 102.0 B HC YAMAHA GRIZZLY 700 14-15, VERTEX 23966B COMP 11,0:1

VERTEX UK PISTON KIT � � � � � 23966B � � � � HC Compr 11.0:1 � �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS:

• BORE SIZE. � 102.00mm [B � 101.96mm]

Replacement Parts.

• Rings. � 590310200002
• Pin. � 715462
• Clips. 72100

Cross reference numbers ONLY.

• Piston (Std) 2BG-11631-00-00
• Piston Ring Set (Std) 1S3-11603-10-00
• Pin, Piston 5VK-11633-00-00
• Circlip � 93450-24154-00

MODEL FITMENT

• YAMAHA GRIZZLY 700 2014-2015 HC COMPR 11,0:1
• YAMAHA VIKING 700 2014-2017 HC COMPR 11,0:1
• YAMAHA RAPTOR 700 2015-2017 HC COMPR 11,0:1

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
