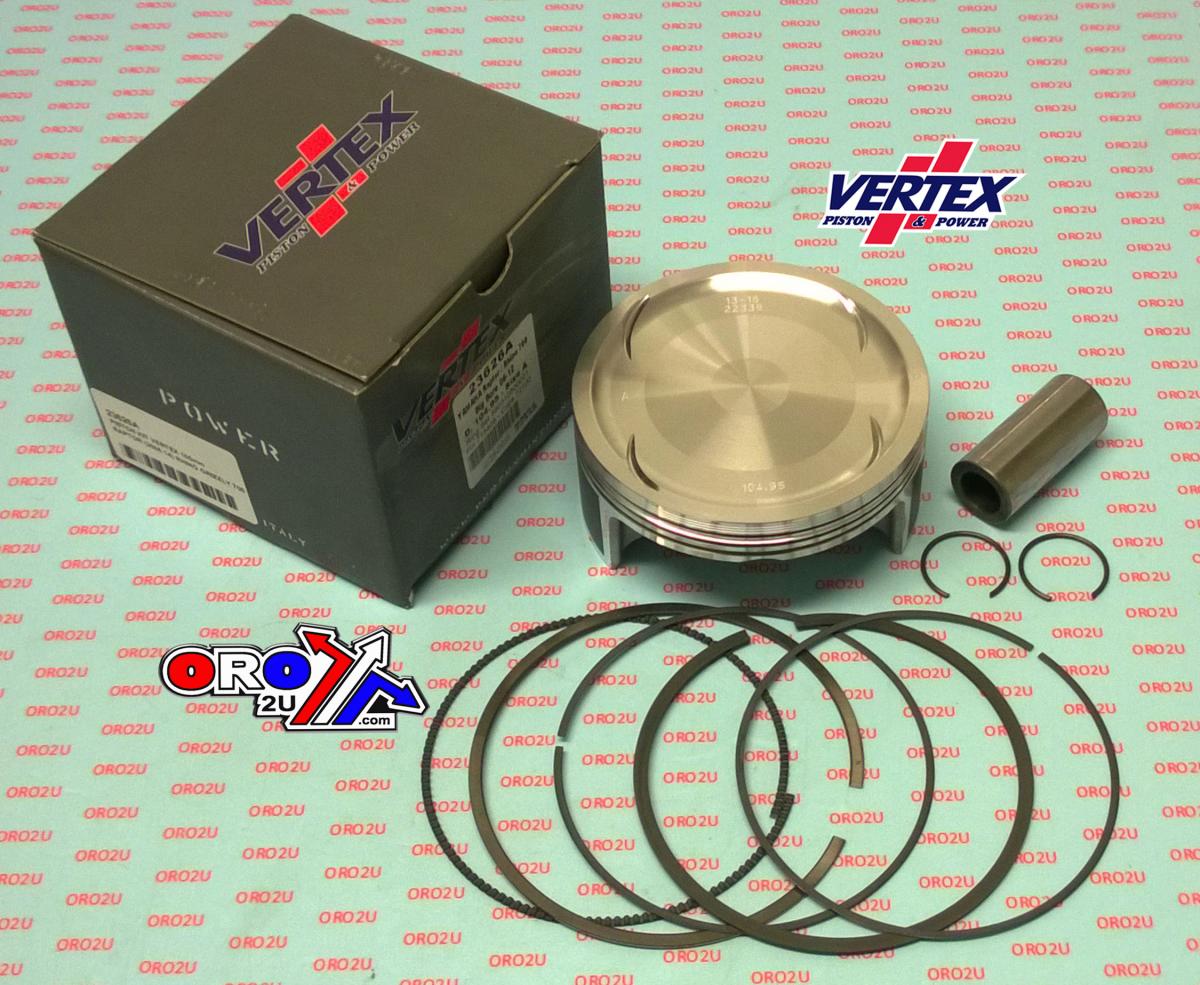

PISTON KIT VERTEX 105.0 C YAMAHA 700 ATV/UTV 06-14, 23626C OS+3.00 BIG BORE

VERTEX UK PISTON KIT � � � � 23626C � � � � Compr 9.20:1 � �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. � 105.00mm BIG BORE +3.00mm [C � 104.97mm]

Replacement Parts.

• Rings. � 590310500001
• Pin. � 715408
• Clips. 72100

Cross reference numbers ONLY.

• Piston (Std) 1S3-11631-10-00
• Ring Set (Std) 1S3-11603-10-00
• Pin, Piston 5VK-11633-00-00
• Circlip 93450-24154-00

MODEL FITMENT

• YAMAHA 700 RAPTOR 2006-2014 BIG BORE COMPR 9,2:1
• YAMAHA 700 RHINO 2006-2013 BIG BORE COMPR 9,2:1
• YAMAHA 700 GRIZZLY 2006-2013 BIG BORE COMPR 9,2:1

�

�

�

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
