PISTON KIT VERTEX 100.0 A HC YAM 660 RAPTOR 02-05, VERTEX 23555A HC COMPR 11,0:1

VERTEX UK PISTON KIT � � � � 23555A � HC Compr 11,0:1 � � �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.

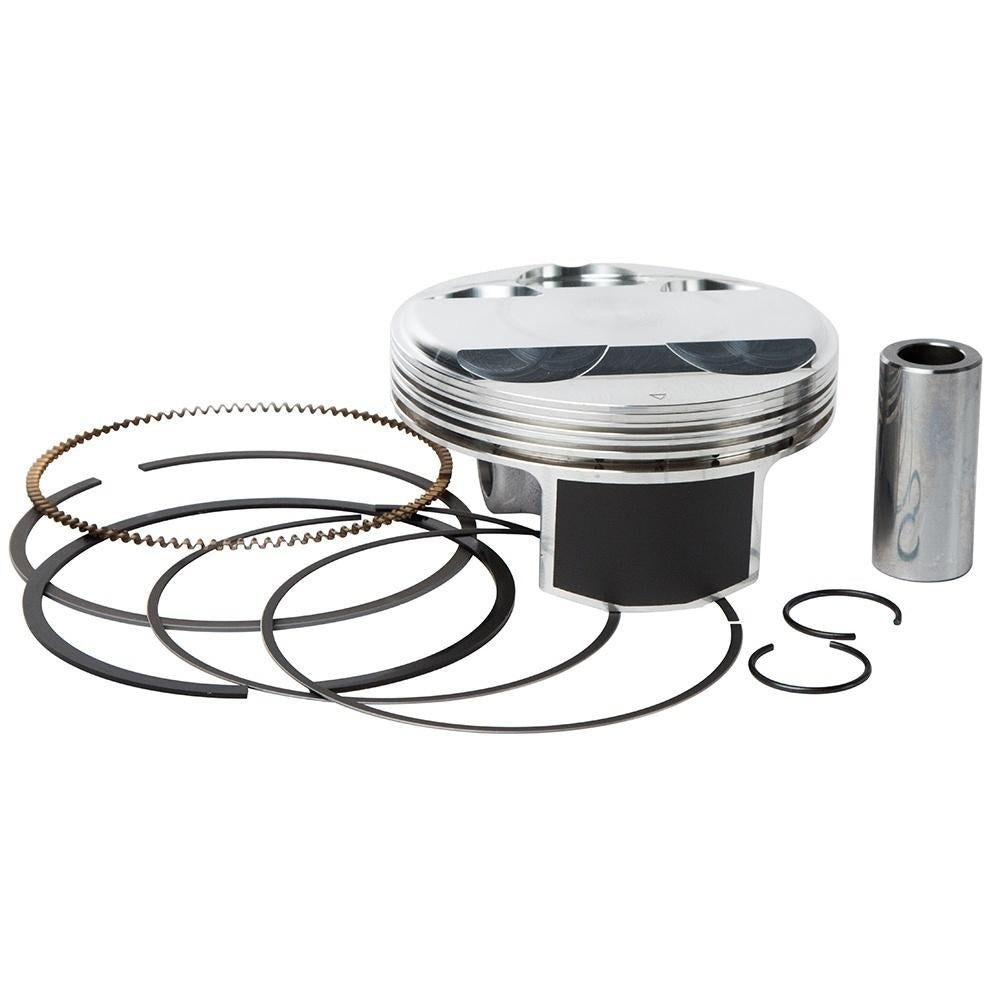

- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. � 100.00mm [A � 99.95mm]

Replacement Parts.

• Rings. � 590310000001
• Pin. � 715270
• Clips. 72068

Cross reference numbers ONLY.

• Piston (1.00Mm Os) AP 2C6-11638-00-00
• Piston (0.50Mm Os) AP � 2C6-11636-00-00
• Piston (Std) 2C6-11631-00-X0
• Piston Ring Set (1.00Mm Os) AP � 2C6-11607-10-00
• Piston Ring Set (0.50Mm Os) AP 2C6-11605-10-00
• Piston Ring Set (Std) 2C6-11603-10-00
• Pin, Piston 3YF-11633-01-00 �
• Circlip � 93450-24028-00

MODEL FITMENT

• YAMAHA 660 RAPTOR 2002-2005 HC COMPR 11,0:1
• YAMAHA 660 RHINO 2002-2005 HC COMPR 11,0:1

�

�

�

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
