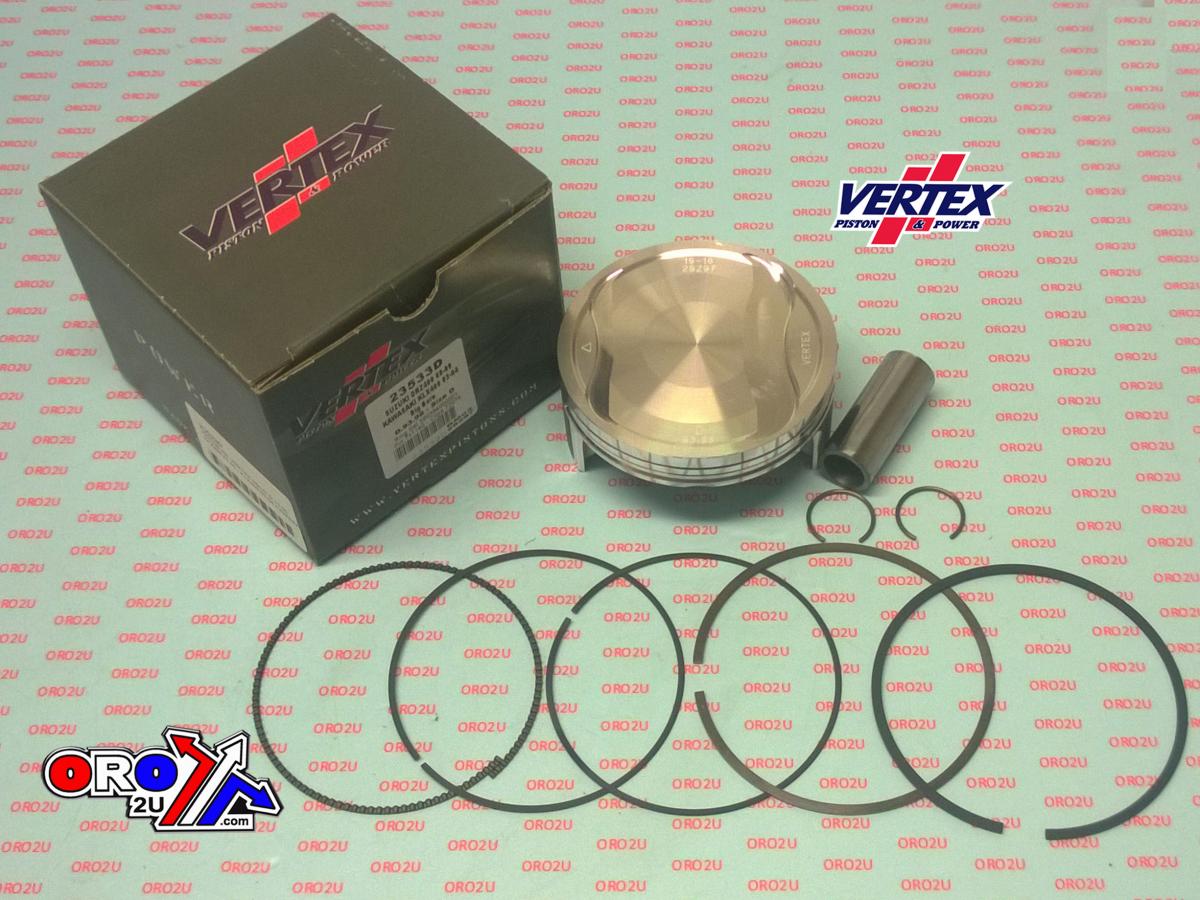

PISTON KIT VERTEX 94.0 B SUZ DRZ/LTZ 00-09, +4.00 BIG BORE XL COMPR 11,3:1

VERTEX UK PISTON KIT � � � � � � � 23533B � Compr 11,3:1 �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. � 94.00 BIG BORE +4.00 � [B � 93.96mm]

Replacement Parts.

• Rings. � 590394000001
• Pin. � 711140
• Clips. 72075

Cross reference numbers ONLY.

• PISTON-ENGINE 13001-S006
• PIN-PISTON 13002-S006
• RING-SET-PISTON 13008-S008
• RING-SNAP,PISTON PIN 92033-S04

MODEL FITMENT

• KAWASAKI KFX 400 2003-2006 BIG BORE COMPR 11,3:1
• KAWASAKI KLX 400 2003-2004 BIG BORE COMPR 11,3:1
• SUZUKI DRZ 400 2000-2009 BIG BORE XL COMPR 11,3:1
• SUZUKI LTZ 400 2003-2009 BIG BORE XL COMPR 11,3:1

�

�

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
