PISTON KIT VERTEX 97.0 B HONDA TRX 450 04-05, VERTEX 23531B OS +3.00 BIG BORE XL

VERTEX UK PISTON KIT � � � � 23531B �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.

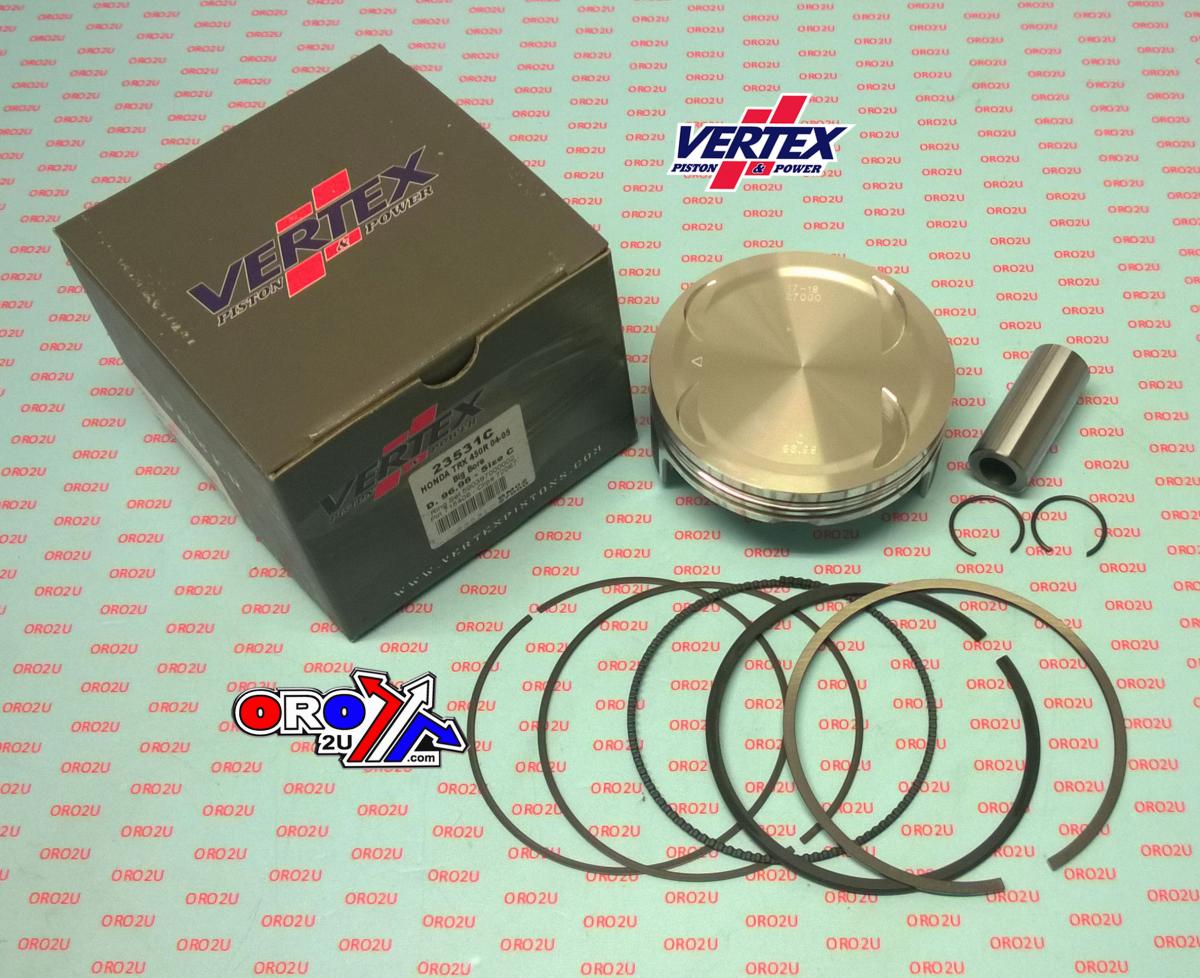

- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. � 97.00mm BIG BORE +3.00mm [B � 96.97mm]

Replacement Parts.

• Rings. � 590397000002 SET
• Pin. � 715406
• Clips. 72067

Cross reference numbers ONLY.

• PISTON 13101-HP1-670
• PIN, PISTON 13111-HP1-670
• CLIP, PISTON PIN (21MM) 13112-HP1-670
• RING SET, PISTON 13011-HP1-305

MODEL FITMENT

• HONDA TRX 450 2004-2005 BIG BORE XL

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
