PISTON KIT VERTEX 100.0 C HC KTM SX/XC 505 08-11, 23417C HC ATV COMPR 12,5:1

VERTEX UK PISTON KIT � � � � � 23417C � � HC Compr 12.5:1 �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.

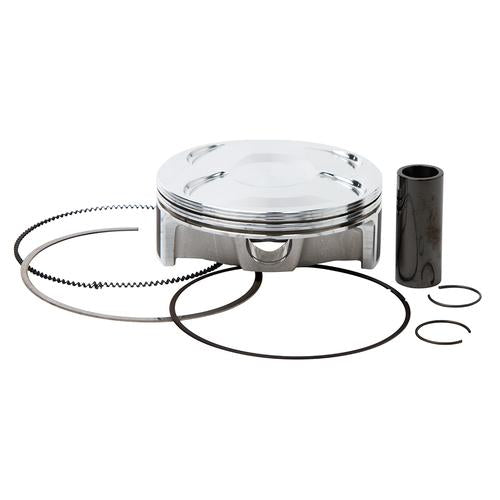

- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. � 100.00 [C � 99.96mm]

Replacement Parts.

• Rings. � 590210000001 SET
• Pin. � 711174
• Clips. 72073

Cross reference numbers ONLY.

• Piston Pin 77630033000
• Circlip � 77630074000
• Piston D=100 07 77630007000 I 77630007200 I
• Piston D=100 07 77630007000 II 77630007300 II
• Oil Scraper Ring � 77630032000 77630032100
• Rectangular Ring D=100 07 77630030000

MODEL FITMENT

• KTM SX 505F 2008-2009 HC COMPR 13,5:1
• KTM SX 505F ATV 2009-2011 HC COMPR 12,5:1 �
• KTM XC 505F ATV 2008-2011 HC COMPR 12,5:1

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
