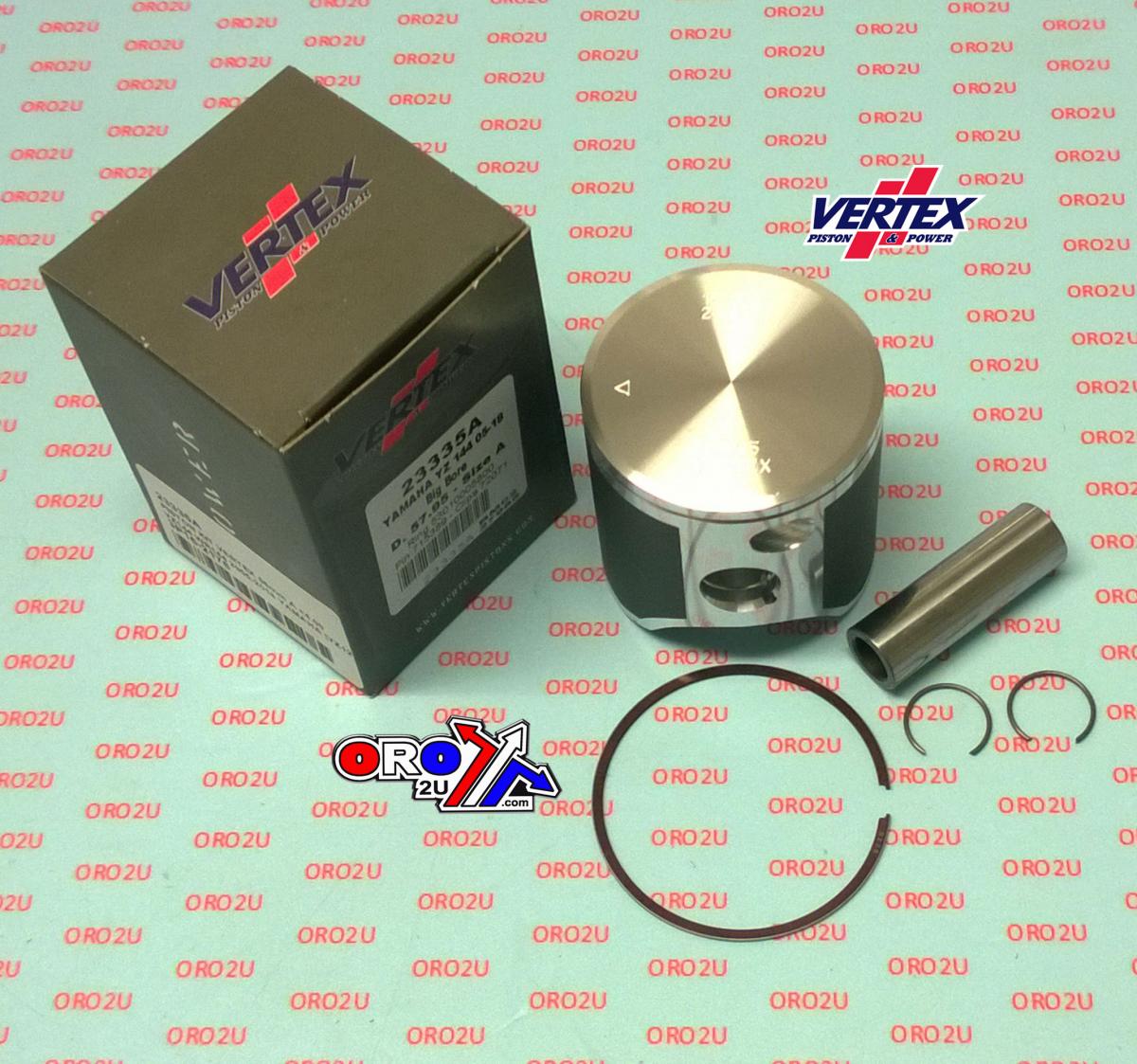

PISTON KIT VERTEX 58.0 A YAMAHA YZ125 05-19, VERTEX 23335A OS +4.00 BIG BORE

VERTEX UK PISTON KIT � � � � 23335A � � �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. � 58.00mm � BIG BORE +4.00mm [A � 47.95mm]

Replacement Parts.

• Rings. � 53010005800
• Pin. � 715389
• Clips. 72071

Cross reference numbers ONLY.

• Piston (Std) UR PURPLE 1C3-11631-01-D0 1C3-11631-03-D0
• Piston (Std) UR GREEN 1C3-11631-01-C0 1C3-11631-03-C0
• Piston (Std) UR ORANGE 1C3-11631-01-B0 1C3-11631-03-B0
• Piston (Std) UR RED 1C3-11631-01-A0 1C3-11631-03-A0
• Ring, Piston 5NY-11611-00-00
• Pin, Piston 1C3-11633-00-00
• Circlip 93450-16068-00

MODEL FITMENT

• YAMAHA YZ 144 2005-2019 BIG BORE
• YAMAHA WR 144 2005-2019 BIG BORE

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
