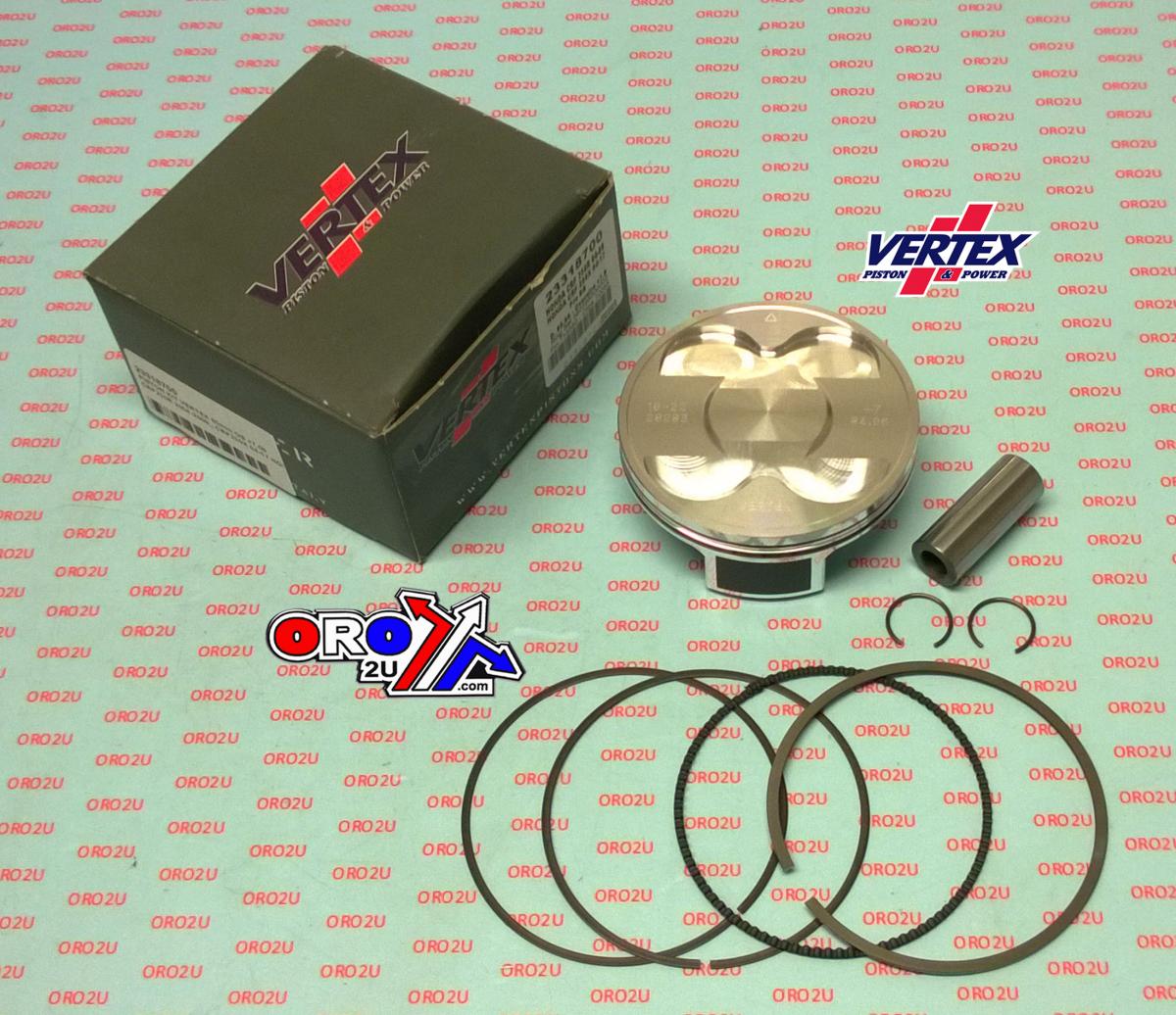

PISTON KIT VERTEX 85.0 HONDA CRF 250 R/X 04-17, 23318700 OS +7.00 BIG BORE XXL

VERTEX UK PISTON KIT � � � � � 23318700 Big Bore � �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. � 85mm OVER SIZE +7.00 [OS � 84.96mm]

Replacement Parts.

• Rings. � 590285000002 SET
• Pin. � 715380
• Clips. 72055

Cross reference numbers ONLY.

• RING SET, PISTON (STD) 13011-KRN-850
• PISTON 13101-KRN-850
• PIN, PISTON 13111-KRN-850
• CLIP, PISTON PIN (16MM) 13115-KM7-700

MODEL FITMENT

• HONDA CRF 250R 2004-2009 BIG BORE XXL
• HONDA CRF 250X 2004-2017 BIG BORE XXL

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
