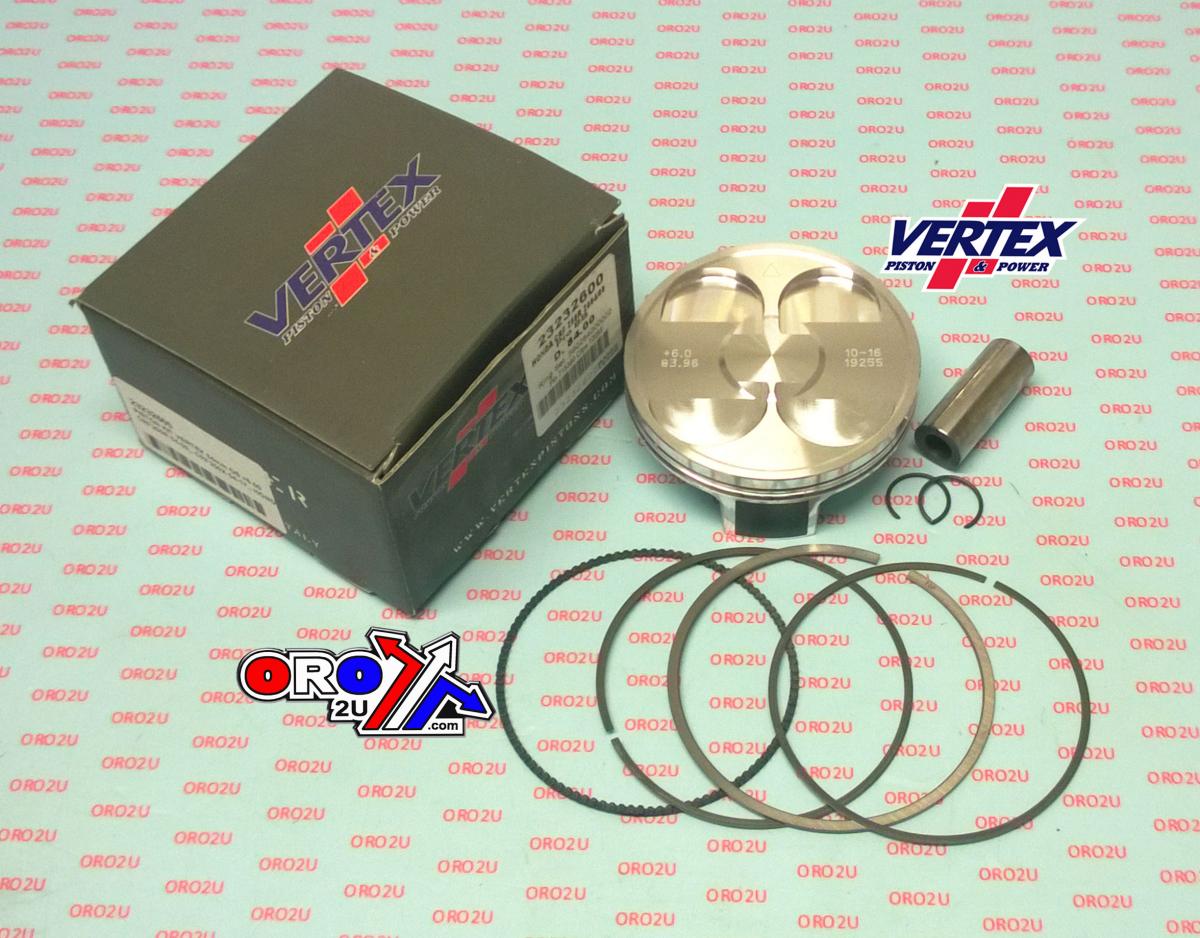

PISTON KIT VERTEX 84.0 YAMAHA WR250F 05-14, 23233700 OS +7.00 BIG BORE XL

VERTEX UK PISTON KIT � � � � � 23233700 � � �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. 84.00mm � OVER SIZE +7.00 [A � 83.95mm]

Replacement Parts.

• Rings. � 590284000002 SET
• Pin. � 715381
• Clips. 72055

Cross reference numbers ONLY.

• Piston (Std) 5NL-11631-20-00
• Piston Ring Set (Std) 5NL-11603-00-00
• Pin, Piston 5NL-11633-00-00
• Circlip 93420-16086-00

MODEL FITMENT

• YAMAHA WR 250F 2005-2014 BIG BORE XL COMP 12,5:1

�

�

�

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
