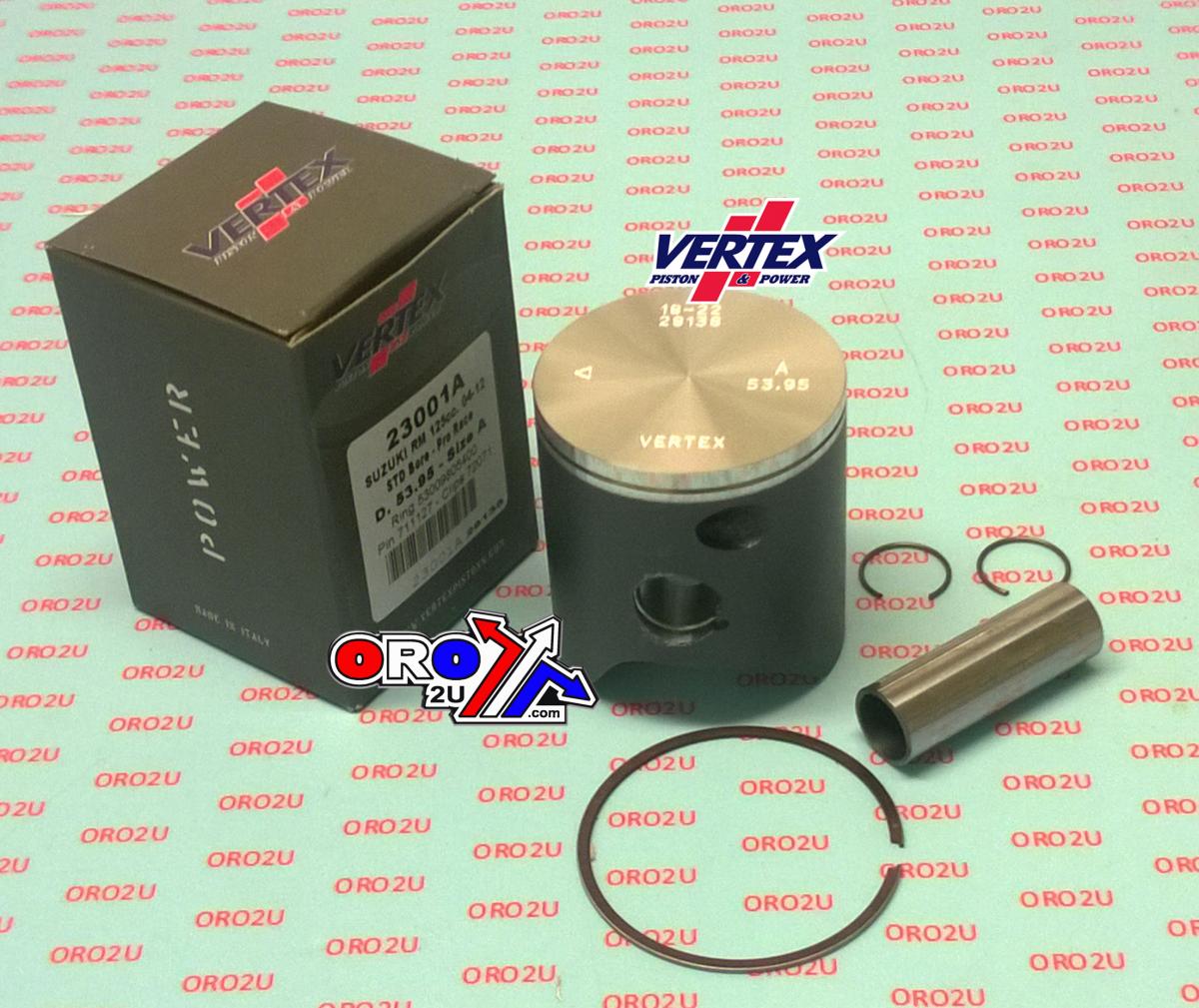

PISTON KIT VERTEX 54.0 D SUZUKI RM 125 04-12 PRO RACE, VERTEX 23001D

VERTEX UK PISTON KIT � � � � � 23001D � � � �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE. � 54.00mm � [D � 53.98mm]

Replacement Parts.

• Rings. � 53010005400
• Pin. � 711127
• Clips. 72071

Cross reference numbers ONLY.

• PISTON MODEL K1 12110-36E30-0F0 12110-36E31-0F0
• PISTON MODEL K2/K3 12110-36E31-0F0
• PISTON MODEL K4/K5 12110-36F00-0F0
• PISTON MODEL K6 12110-36F10-0F0 12110-36F00-0F0
• RING, PISTON MODEL K1/K2 12110-36F00-0F0
• RING, PISTON MODEL K3/K4/K5/K6 12110-36F00-0F0
• PIN, PISTON 12151-01B41
• CIRCLIP 09381-15001
• PISTON KIT OPT FOR E28 12100-36830 12100-36840
• PISTON KIT OPT FOR E28 12100-36831
• PISTON KIT OPT FOR E28 12101-36810
• MODEL K3 12101-36810
• PISTON KIT OPT FOR E28 12101-36821
• MODEL K4/K5/K6 12101-36821

MODEL FITMENT:

• SUZUKI RM 125 2004-2012 PRO RACE

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
