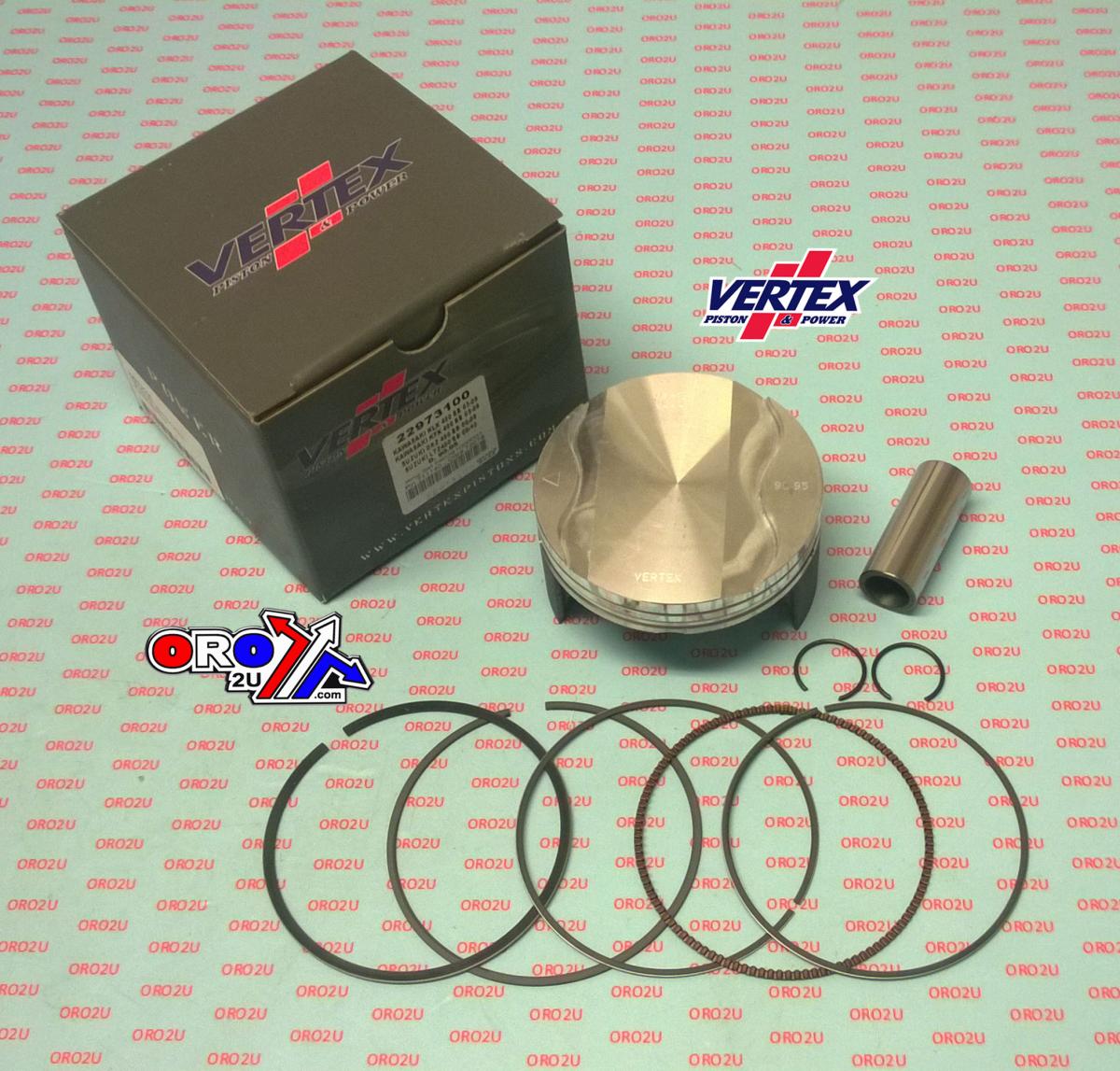

PISTON KIT VERTEX 91.0 SUZUKI DRZ/LTZ400 00-12, BIG BORE OS +1.00 KAW KLX/KFX400

VERTEX UK PISTON KIT � � � � 22973100 � � � BIG BORE +1.00mm �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

• BORE SIZE. � 91.00mm � � [A � 90.96mm]

Replacement Parts.

• Rings. � 590391000001 SET
• Pin. � 711140
• Clips. 72075

Cross reference numbers ONLY.

• PISTON-ENGINE 13001-S006
• PIN-PISTON 13002-S006
• RING-SET-PISTON 13008-S008
• RING-SNAP,PISTON PIN 92033-S040

MODEL FITMENT:

• KAWASAKI KLX 400 2003-2004 BIG BORE
• KAWASAKI KFX 400 2003-2006 BIG BORE
• SUZUKI DRZ 400 2000-2009 BIG BORE
• SUZUKI LTZ 400 2000-2012 BIG BORE

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
