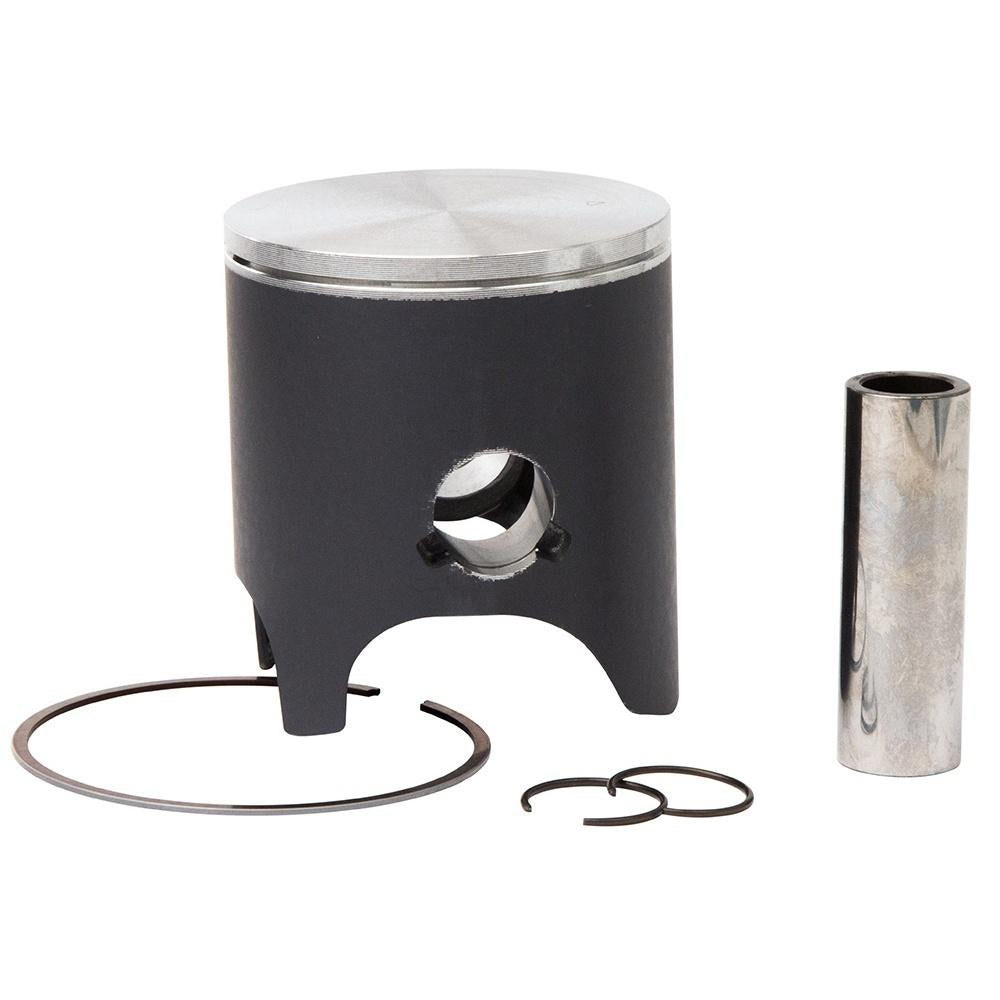

PISTON KIT VERTEX 66.4 A KTM SX 250 00-02, VERTEX 22649A

VERTEX UK PISTON KIT � � � � � 22649A � � � �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE. � 66.40mm [A � 66.34mm]

Replacement Parts.

• Rings. � 53010006640
• Pin. � 715372
• Clips. 72074

Cross reference numbers ONLY.

• �Piston 54630207000 I, 54630207100 I , 54630207000 II , 54630207100 II
• Square Ring 66,4Mm 250 2000 54630232000
• Wire Lock Ring C18x1,5 54030074000
• Piston Pin 18X55,8 250 2000 54630233000

MODEL FITMENT:

• KTM SX 250 2000-2002

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
