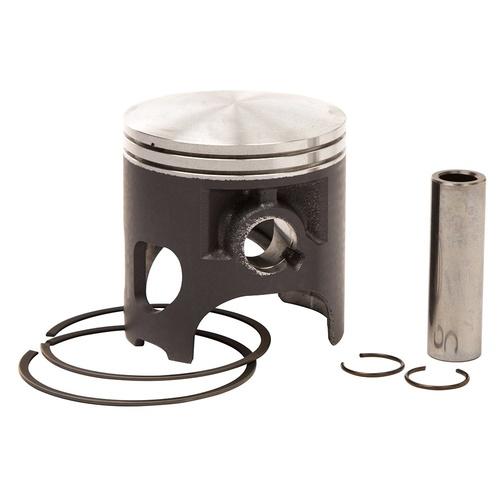

PISTON KIT VERTEX 66.50 YAMAHA YFS200 BLASTER ALL, VERTEX 22569050 OS +0.50

VERTEX UK PISTON KIT � � � � � 22569050 � � � �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE. � 66.50mm OVERSIZE +0.50 [OS 66.45mm]

Replacement Parts.

• Rings. 590266500001
• Pin. � 715137
• Clips. 72055

Cross reference numbers ONLY.

• Piston (0.25Mm O/S) AP 2XJ-11635-01-00
• Piston (0.50Mm O/S) AP 2XJ-11636-01-00
• Piston (Std) 2XJ-11631-01-97
• Piston Ring Set (0.25Mm O/S) AP 3JM-11601-10-00
• Piston Ring Set (0.50Mm O/S) AP 3JM-11601-20-00
• Piston Ring Set (Std) 3JM-11601-00-00
• Bearing 93310-316H6-00 93310-316D6-00
• Pin, Piston 4L0-11633-00-00
• Circlip 93450-17044-00

MODEL FITMENT:

• YAMAHA YFS 200 BLASTER ALL TO 2006

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
