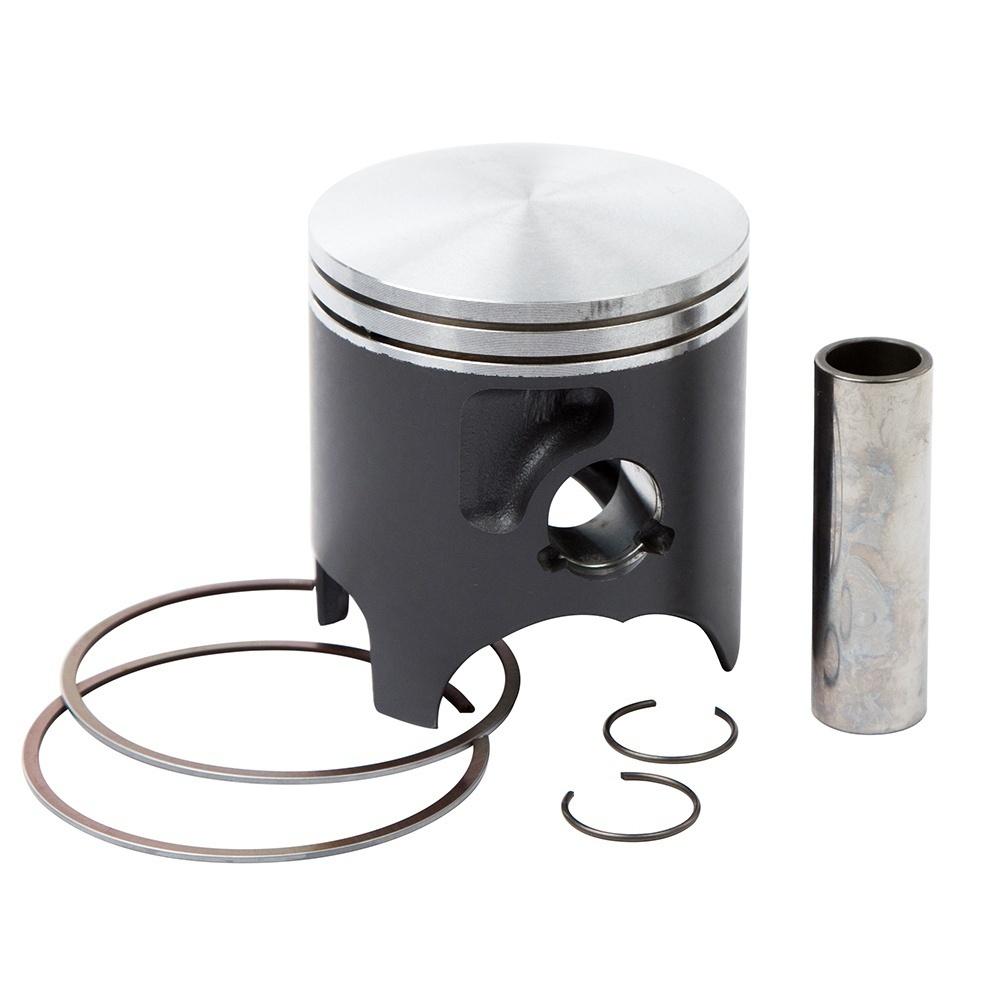

PISTON KIT VERTEX 68.0 D YAMAHA YZ/WR 250 96-98, VERTEX 22356D

VERTEX UK PISTON KIT � � � � � 22356D � � � �

All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE. � 68.00 � [D 67.97 mm]

Replacement Parts.

• Rings. � 53012006800 � � �
• Pin. � 711117 � � �
• Clips. 72074

Cross reference numbers ONLY.

• Piston (Std) UR 4SR-11631-00-A0, 4SR-11631-00-B0, 4SR-11631-00-C0, 4SR-11631-00-D0,
• Piston Ring Set (Std) 4JX-11603-00-00
• Pin, Piston 2VM-11633-01-00
• Circlip 93450-19052-00

MODEL FITMENT:

• YAMAHA YZ250 1996-1998
• YAMAHA WR250 1996-1998

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
