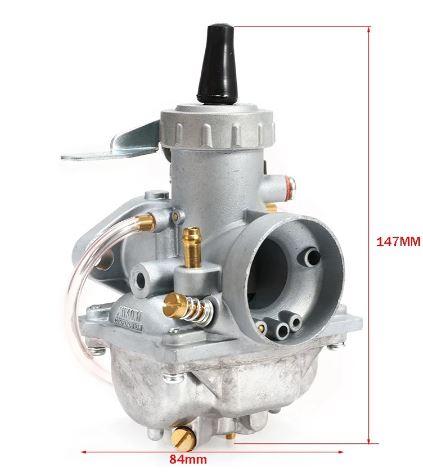

CARBURETOR Assembly suzuki TS100/125 13200-48030, TC125 DS100/125

Carburetor Assembly for Suzuki TS125/TS100

Compatible Models:

• 1971 Suzuki TS125 Duster
• 1972 Suzuki TS125 Duster
• 1973 Suzuki TS125 Duster
• 1974 Suzuki TS125 Duster
• 1975 Suzuki TS125 Duster
• 1976 Suzuki TS125 Duster
• 1977 Suzuki TS125
• 1978 Suzuki TS125
• 1979 Suzuki TS125
• 1980 Suzuki TS100
• 1981 Suzuki TS100
• 1979 Suzuki TS100
• 1978 Suzuki TS100

Specifications:

• Type: Flange Mount Carburettor
• Model: VM Carb
• Size: 26mm
• Carburettor Slide Type: Round Slide
• Mount Type: Bolt On Flange
• Idle Location: Left
• Carburettor Depth: 85mm
• Carburettor Height: 133mm
• Carburettor Width: 85mm
• Intake Bell OD: 43mm

Features:

• Top-quality carburetor made to high precision standards.
• Exact OEM measurements and fittings.
• Meets or exceeds OEM specifications.
• Please see the image before ordering to avoid mistakes.
• ORO products are high-quality replacement parts and carry a satisfaction guarantee.
• Best value for money.
• All components match the original equipment in appearance.
• Easy installation; consult a professional if unsure.

Cross Reference Numbers:

• 13200-48030
• GASKET, FLOAT CHAMBER: 13251-11010
• FLOAT: 13252-11010
• PIN, FLOAT: 13254-01010
• PLATE: 13259-97010
• VALVE, NEEDLE: 13370-18111
• GASKET, NEEDLE VALVE: 13392-58600
• JET, PILOT (17.5): 09492-17006
• JET, MAIN (120): 09491-24014
• WASHER, NEEDLE JET: 13382-03110
• RING: 13295-28010, 13295-28011
• SCREW, THROTTLE STOP: 13267-41640
• SPRING: 13268-48110
• RING: 13294-30010, 13278-02340
• PLUG: 13664-18654
• WASHER: 13663-31010
• JET, NEEDLE (0-4): 09494-00242
• VALVE, THROTTLE (CA:2.0): 13551-48130
• NEEDLE, JET (5F41): 13383-48030
• SPRING: 13388-47010
• WASHER: 13382-47010
• CLIP, NEEDLE: 13394-10010
• RING: 13387-47010
• SEAT, THROTTLE VALVE SPRING: 13581-48020
• LOCK WASHER: 08321-21038, 09162-03001
• SCREW: 02111-03067, 02112-0306B
• SPRING, THROTTLE VALVE: 13573-27650
• NUT, CABLE ADJUSTER: 13661-16600
• ADJUSTER, CABLE: 13577-48110
• BOOT, CABLE ADJUSTER: 13681-16601
• SCREW: 13247-05010
• GASKET: 13249-05010
• SCREW: 02112-04168, 02112-0416A
• LOCK WASHER: 08321-21048, 08321-0104A

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
