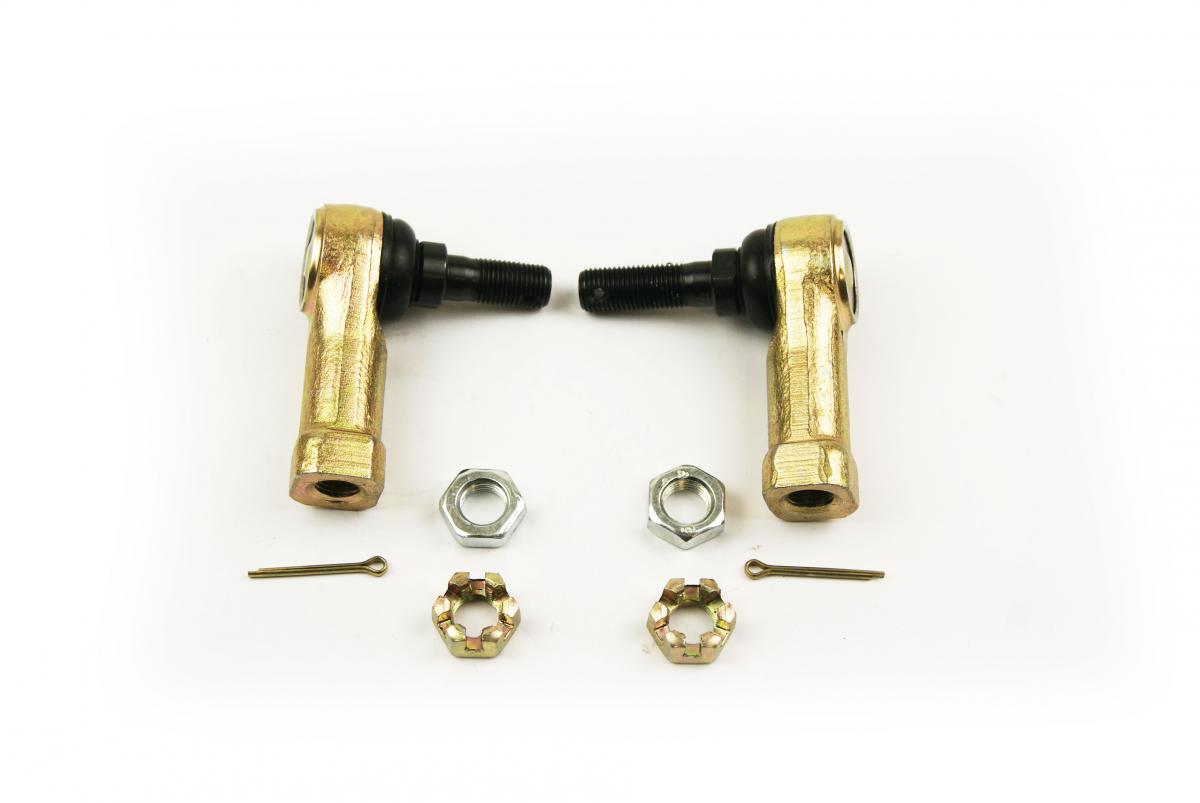

TIE ROD END KIT CAN-AM, 51-1009, KAW KVF360A 03-13

Tie Rod End Kit
Brand: ALLBALLS
Part Number: 51-1009
Alternate Part Number: 0430-0059
Part Number: 17-7006

Description:

• Replaces loose or worn tie-rod ends.
• Kits include both inner and outer ends for one tie-rod.

Included Items:

• (2) Tie rod ends
• (2) Cotter pins

Dimensions:

Tie Rod 1:

• Tie Rod End: 12mm x 1.25 RH external threads
• Spindle End: 12mm x 1.25 RH external threads (Non-tapered end)

Tie Rod 2:

• Tie Rod End: 12mm x 1.25 LH external threads
• Spindle End: 12mm x 1.25 RH external threads (Non-tapered end)

Fits the following models:

• Can-Am:
  Outlander 330 (2004-2005)
  Outlander 400 (2003-2004)
  Outlander 400 STD 2x4 (2005)
  Outlander 400 STD 4x4 (2005-2015)
  Outlander 400 XT 4x4 (2004-2014)
  Outlander 500 LTD 4x4 (2010)
  Outlander 500 STD 4x4 (2007-2012)
  Outlander 500 XT 4x4 (2007-2012)
  Outlander 650 STD 4x4 (2006-2012)
  Outlander 650 XT 4x4 (2006-2012)
  Outlander 800 STD 4x4 (2006-2008)
  Outlander 800 XMR (2011-2012)
  Outlander 800 XT 4x4 (2006-2008)
  Outlander 800 XXC (2011)
  Outlander 800R STD 4x4 (2009-2011)
  Outlander 800R XT 4x4 (2009-2012)
  Outlander MAX 400 EFI/STD/XT (2015)
  Outlander MAX 400 STD 4x4 (2005-2014)
  Outlander MAX 400 XT 4x4 (2006-2014)
  Outlander MAX 500 STD 4x4 (2007-2012)
  Outlander MAX 500 XT 4x4 (2007-2012)
  Outlander MAX 650 STD 4x4 (2006-2012)
  Outlander MAX 650 XT 4x4 (2006-2012)
  Outlander MAX 800 LTD 4x4 (2007-2008)
  Outlander MAX 800 STD 4x4 (2006-2008)
  Outlander MAX 800 XT 4x4 (2006-2008)
  Outlander MAX 800R LTD 4x4 (2009-2012)
  Outlander MAX 800R STD 4x4 (2009-2011)
  Outlander MAX 800R XT 4x4 (2009-2012)

• Renegade:
  Renegade 500 (2008-2012)
  Renegade 500 XT (2012)
  Renegade 800 (2007-2011)
  Renegade 800 X (2008-2009)
  Renegade 800 XXC (2010-2011)

• Kawasaki:
  KVF360A Prairie 4x4 (2003-2013)
  KVF360B Prairie (2003-2011)
  KVF360C Prairie 4x4 (2003-2013)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
