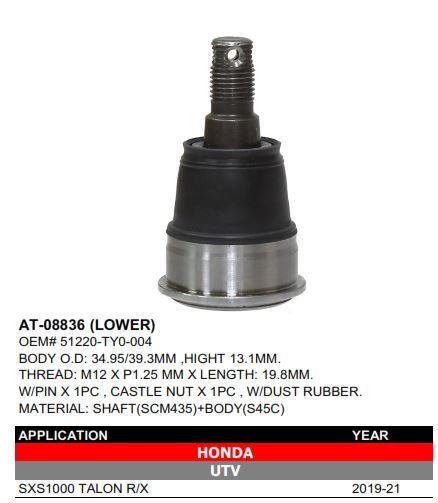

BALL JOINT LOWER SXS1000 TALON R/X 19-23, BRONCO AT-08836, 51220-TY0-004

Ball Joint Bronco AT-08836

Fitment:

• Honda SXS1000 TALON R/X: 2019 - 2021

Specifications:

• Body Outer Diameter (O.D.): 34.95 mm / 39.3 mm
• Height: 13.1 mm
• Thread: M12 x P1.25 mm
• Length: 19.8 mm
• Components Included: Pin x 1 pc, Castle Nut x 1 pc, Dust Rubber
• Material: Shaft (SCM435) + Body (S45C)

Features:

• Manufactured to strict tolerances for a precise fit
• Heavy-duty steel housings
• POM-M90 bearing cup for isolation and longer life
• Includes snap ring and cotter pin (where applicable)
• Exact OEM measurements and fittings
• Meets or exceeds OEM specifications
• High-quality replacement part with satisfaction guarantee

Part Number: 17-5042.BR

Cross Reference Numbers:

• AT-08836
• 51220-TY0-004

Compatible Assemblies:

• 2019 Talon 1000R (SXS1000S2R A): Front Knuckle / Driveshaft
• 2019 Talon 1000R (SXS1000S2R AC): Front Knuckle / Driveshaft
• 2019 Talon 1000X (SXS1000S2X A): Front Knuckle / Driveshaft
• 2019 Talon 1000X (SXS1000S2X AC): Front Knuckle / Driveshaft
• 2020 Talon 1000R (SXS1000S2R A): Front Knuckle / Driveshaft
• 2020 Talon 1000R (SXS1000S2R AC): Front Knuckle / Driveshaft
• 2020 Talon 1000X (SXS1000S2X A): Front Knuckle / Driveshaft
• 2020 Talon 1000X (SXS1000S2X AC): Front Knuckle / Driveshaft
• 2020 Talon 1000X-4 (SXS1000S4 A): Front Knuckle / Driveshaft
• 2020 Talon 1000X-4 (SXS1000S4 AC): Front Knuckle / Driveshaft
• 2020 Talon 1000X-4 (SXS1000S4D A): Front Knuckle / Driveshaft
• 2020 Talon 1000X-4 (SXS1000S4D AC): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2R 6A): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2R 6AC): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2R A): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2R AC): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2X A): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S2X AC): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S4X 5A): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S4X 5AC): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S4X A): Front Knuckle / Driveshaft
• 2021 Talon 1000 (SXS1000S4X AC): Front Knuckle / Driveshaft
• 2021 Talon 1000R (SXS1000S2R 5A): Front Knuckle / Driveshaft
• 2021 Talon 1000R (SXS1000S2R 5AC): Front Knuckle / Driveshaft
• 2021 Talon 1000X (SXS1000S2X 5A): Front Knuckle / Driveshaft
• 2021 Talon 1000X (SXS1000S2X 5AC): Front Knuckle / Driveshaft

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
