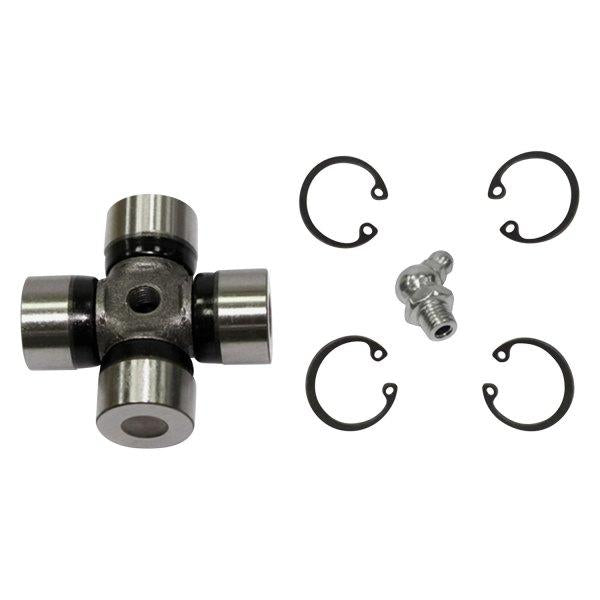

UNIVERSAL JOINT CAN-AM, BRONCO AT-08529 715-9004-02

ATV Universal U-Joint Spider - Bronco AT-08529

Features:

• Construction: High-quality product manufactured by a SO-9000 facility, ensuring durability and precision.

Components Included:

• Spider
• 4 bearings
• Circlips (C-clips)
• Grease zerk (90-degree)
• Cap plug

Specifications:

• Size A: 22.05 mm
• Size B: 55.3 mm
• C-Clips Size: 1.1 x 23.6 mm
• Grease Nipple: 90-degree angle
• Plug Included: Yes

Part Number: 17-3325.BR (Available at )

Cross Reference Numbers:

• 715-9004-02
• ALLBALLS 19-1008

Applications:

1. U-Joint for Front Prop Shaft - Front & Rear (Ref# 2, 4):

Can-Am:

Commander 1000 Series:

• DPS 2016-2018
• LTD 2016-2018
• STD 2011-2018
• XT 2016-2018
• XTP 2014-2017

Commander 800 Series:

• DPS 2013-2018
• LTD 2016
• STD 2011-2018
• XT 2011-2018
• XTP 2016

Commander MAX 1000 Series:

• DPS 2018
• LTD 2018
• STD 2015-2018
• XT 2018

Defender 1000 Series:

• 2016-2018
• DPS Built After 11/2016 (17)
• DPS Built Before 11/2016 (17)
• XMR 2018
• XT 2016-2018
• XTP 2018

Defender 800 Series:

• 2016-2018
• DPS Built After 11/2016 (17)
• DPS Built Before 11/2016 (17)
• XT 2016-2018

Maverick 1000 Series:

• STD 2013-2018
• TURBO 2016-2017
• TURBO XDS 2015-2016
• TURBO XRS 2016
• XC 2016-2017
• XDS 2015-2016
• XMR 2014-2018
• XRS 2013-2015
• XXC 2014-2017

Maverick MAX 1000 Series:

• STD 2014-2018
• TURBO 2016-2017
• TURBO XDS 2015-2017
• TURBO XRS 2016-2017
• XC/XXC 2016

Maverick Trail 1000 Series:

• 2018

Maverick X3 Series:

• Various models including TURBO, TURBO R, and XDS from 2017-2018

Outlander Series:

• 450 EFI (DPS) 2016-2018
• 570 EFI (DPS) 2016-2017
• Various other models from 2006-2018

2. U-Joint for Front Axle - Inner (Ref 1):

Polaris:

• 300 4x4 (95)
• 350L 4x4 (93)
• Various models from 1993-2002 including Big Boss, Diesel, Magnum, Scrambler, Sportsman, Worker, and Xplorer series.

3. U-Joint for Front Drive Shaft - Differential Side (Ref 2):

• Can-Am Commander Series: Similar to the applications listed under "Front Prop Shaft."

4. U-Joint for Front Drive Shaft - Engine Side (Ref 3):

• Can-Am Commander Series: Similar to the applications listed under "Front Prop Shaft."

5. U-Joint for Rear Drive Shaft - Differential Side (Ref 5):

Can-Am Outlander Series:

• 330, 400 (2003-2015)
• Various MAX models.

6. U-Joint for Rear Drive Shaft - Engine Side (Ref 4):

• Can-Am Outlander Series: Similar to the applications listed under "Rear Drive Shaft - Differential Side."

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
