UNIVERSAL JOINT SUZUKI LT-A500F 00 YAMAHA BIG BEAR 250-400, BRONCO AT-08509

ATV Universal U-Joint Bronco AT-08509

Specifications:

• Size A: 25.00mm / 41.250mm (Refer to the image for exact measurements)

Applications:

1. Front Drive Shaft - Differential Side (Reference 2):

Arctic Cat:

• 1000 LTD Mudpro (2015-2017)
• 1000 TRV / Cruiser (2009-2012)
• 1000 TRV (2013)
• 1000 TRV GT (2012)
• 1000 TRV XT/LTD (2015)
• 1000 XT (2013-2017)
• 1000i GT (2012)
• 1000i LTD EFI Mudpro (2012-2014)
• 400 4x4 w/MT (2001)
• 500 4x4 w/AT (2000-2002)
• 500 4x4 w/MT (2000-2001)
• 700 XT (2013-2014)
• Alterra TRV 1000 XT (2017)
• H2 Mudpro (2010-2011)
• H2 Thundercat (2009-2011)
• Prowler 1000 XT (2015-2017)
• Prowler 1000 XTZ (2011-2014)
• Prowler 1000 XTZ H2 (2009-2011)

Suzuki:

• LT-A500F Quad Master Auto (2000)

2. Front Drive Shaft - Engine Side (Reference 3):

Arctic Cat:

• 1000 LTD Mudpro (2015-2017)
• 1000 TRV / Cruiser (2009-2012)
• 1000 TRV (2013)
• 1000 TRV GT (2012)
• 1000 TRV XT/LTD (2015)
• 1000 XT (2013-2017)
• 1000i GT (2012)
• 1000i LTD EFI Mudpro (2012-2014)
• 250 4x4 (2001-2005)
• 300 4x4 (1998-2005)
• 400 4x4 (1998-2000)
• 400 4x4 w/MT (2001-2002)
• 400 FIS 4x4 w/MT (2002)
• 454 4x4 (1996-1998)
• 500 4x4 (1998-1999)
• 500 4x4 w/AT (2000-2002)
• 500 4x4 w/MT (2000-2001)
• 500 FIS 4x4 w/AT (2002)
• 500 FIS 4x4 w/MT (2002)
• 500 FIS TBX 4x4 (2002-2006)
• 700 XT (2013-2014)
• Alterra TRV 1000 XT (2017)
• H2 Mudpro (2010-2011)
• H2 Thundercat (2009-2011)
• Prowler 1000 XT (2015)
• Prowler 1000 XTZ (2011-2014)
• Prowler 1000 XTZ H2 (2009-2011)

Suzuki:

• LT-4WD 250 Quad Runner (1987-1998)
• LT-A500F Quad Master Auto (2000)
• LT-A500X (2009-2014)
• LT-A500XP Power Steering (2011-2013)
• LT-F250F 4WD Quad Runner (1999-2002)
• LT-F300F King Quad (1999-2000)
• LT-F4WDX King Quad 300 (1991-1998)

3. Rear Drive Shaft - Differential Side (Reference 5):

Arctic Cat:

• 1000 LTD Mudpro (2015-2017)
• 1000 TRV / Cruiser (2009-2012)
• 1000 TRV (2013)
• 1000 TRV GT (2012)
• 1000 TRV XT/LTD (2015)
• 1000 XT (2013-2017)
• 1000i GT (2012)
• 1000i LTD EFI Mudpro (2012-2014)
• 500 FIS TBX 4x4 (2002)
• 650 4x4 w/AT V2 (2004-2006)
• 700 XT (2013-2014)
• Alterra TRV 1000 XT (2017)
• H2 Mudpro (2010-2011)
• H2 Thundercat (2008-2011)
• Prowler 1000 XT (2015-2017)
• Prowler 1000 XTZ (2011-2014)
• Prowler 1000 XTZ H2 (2009-2011)
• Prowler 550 (2009)
• Prowler 650 (2007)
• Prowler 650 XT (2006-2009)

Kawasaki:

• Teryx 750 4x4 (2008-2013)

4. Rear Drive Shaft - Engine Side (Reference 4):

Arctic Cat:

• 1000 LTD Mudpro (2015-2017)
• 1000 TRV / Cruiser (2009-2012)
• 1000 TRV (2013)
• 1000 TRV GT (2012)
• 1000 TRV XT/LTD (2015)
• 1000 XT (2013-2017)
• 1000i GT (2012)
• 1000i LTD EFI Mudpro (2012-2014)
• 650 4x4 w/AT V2 (2004-2006)
• 700 XT (2013-2014)
• Alterra TRV 1000 XT (2017)
• H2 Mudpro (2010-2011)
• H2 Thundercat (2008-2011)
• Prowler 1000 XT (2015-2017)
• Prowler 1000 XTZ (2011-2014)
• Prowler 1000 XTZ H2 (2009-2011)
• Prowler 550 (2009)
• Prowler 650 (2007)
• Prowler 650 XT (2006-2009)

Kawasaki:

• Teryx 750 4x4 (2008-2013)

Suzuki:

• LTA-450 X King Quad (2007-2010)
• LT-A500F Vinson (2002-2007)
• LT-A500X (2015-2017)
• LT-A500XP Power Steering (2016-2017)
• LTA-700 X King Quad (2005-2007)
• LTA-750 X King Quad (2008-2014)
• LTA-750 XP King Quad Power Steering (2011-2017)
• LT-F500F (1998-2000)
• LT-F500F Vinson (2003-2007)

5. Yamaha:

Big Bear:

• 250, 2x4 (2007-2008)
• 350, 4WD FDS (1986)
• 400, 4WD FDS, RDS (2007-2008), 4WD FDS (2006)

Bruin:

• 250, 2x4 (2006)

Grizzly:

• 350, 2x4 (2007-2008)
• 350, 4WD FDS RDS (2007-2008)
• 400, 4WD RDS (2007-2008)
• 450, 4WD FDS, RDS (2007-2008)

Kodiak:

• 400, 4WD RDS (2005-2006), FDS (1998-1999)
• 450, 4WD FDS, RDS (2003-2006)

Rhino:

• 450, 4WD FDS (2006)
• 650, 4WD FDS (2004-2007)
• 700, 4WD FDS (2008-2009)

Features:

• Construction: Made to exacting specifications and interchangeable with OEM parts.
• Quality: Manufactured by SO-9000 facility.
• Durability: High-quality product, offering a durable and affordable alternative to expensive OEM joints.

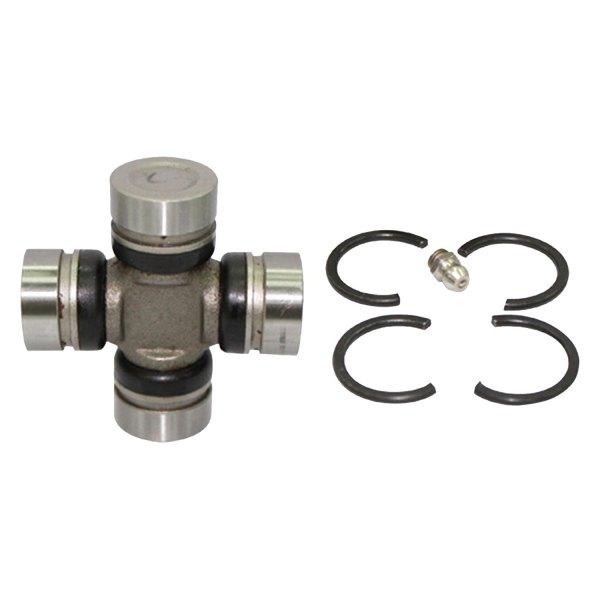

• Components: Includes spider, 4 bearings, circlips, and grease zerk.

Part Number: 17-3315.BR )

Cross Reference Number:

• ALLBALLS 19-1001

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
