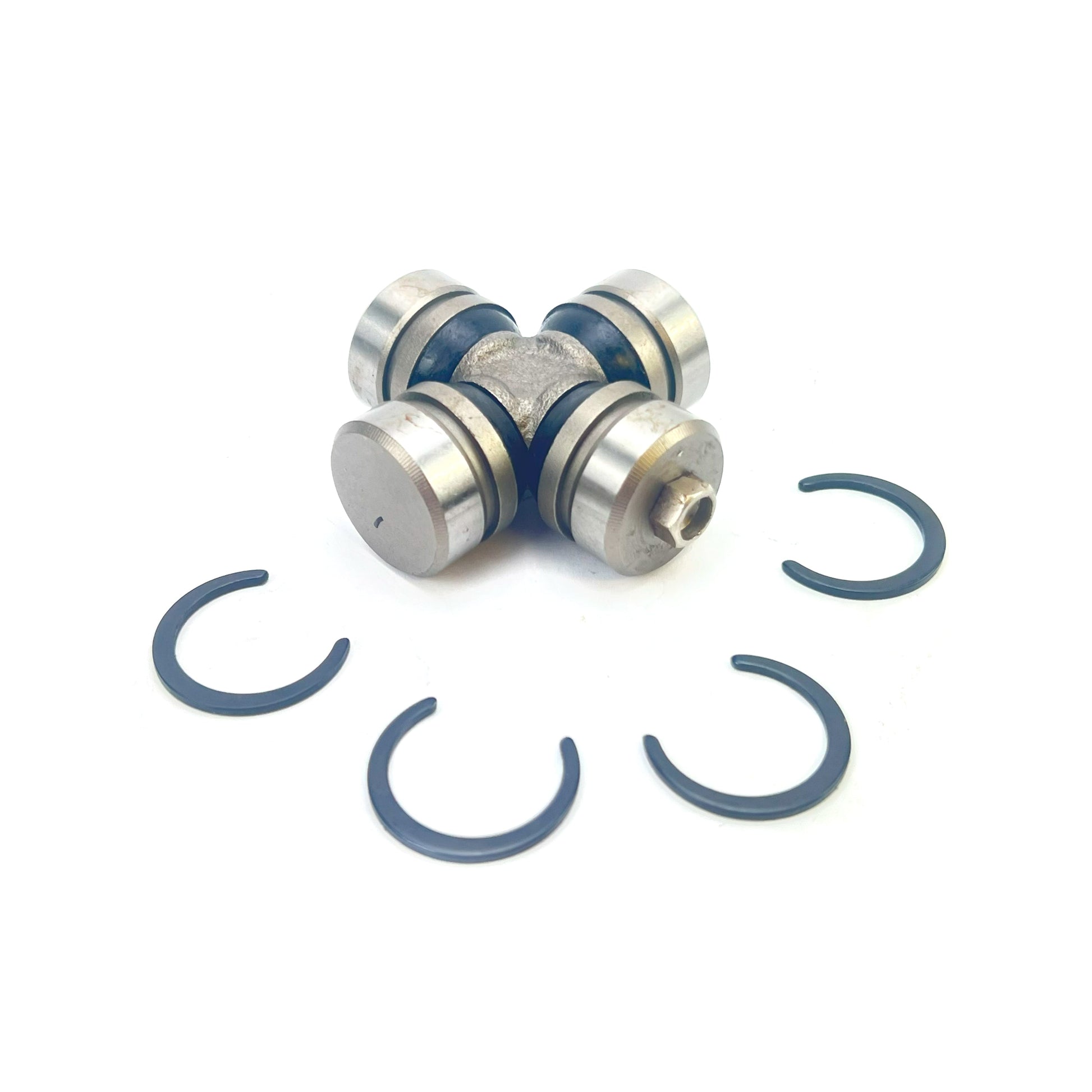

UNIVERSAL JOINT KAWASAKI MULE, BRONCO AT-08513

Universal UV Joint Bronco AT-08513

Specifications:

• Diameter: 22mm
• Width: 36mm (with inside snap rings)
• Size: Outer Diameter (OD) 22mm x Overall Width 53.2mm
• Clip Groves: 31.2mm

Key Features:

• U-Joints are cold forged from SCM-415 steel.
• Precision ground journals case-hardened to HRC58-61.
• Pre-greased with high-temperature Lithium Complex 3 grease.
• Zerk and grease channels in the bearing cup evenly distribute grease.
• Includes a cap plug to eliminate grease zerk for low-clearance applications.
• Honda yoke assemblies have upgraded cross diameters from 17mm to 19mm, featuring stainless steel clamps and high-quality neoprene rubber boots for long life and abrasion resistance.

Part Number: 17-3014.BR

U-Joint Applications

Front Drive Shaft - Differential Side (Ref 2):

Kawasaki:

• Mule 2510 4x4 (2000)
• Mule 2510 Diesel (2000-2002)
• Mule 3010 4x4 (2001-2008)
• Mule 3010 Diesel (2001-2008)
• Mule 4010 4x4 (2009-2018)
• Mule 4010 4x4 Diesel (2009-2013)
• Mule 610 4x4 (2005-2016)
• Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
• Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)
• MULE SX (2017-2018)
• Teryx 750 4x4 (2008-2013)

Front Drive Shaft - Engine Side (Ref 3):

Kawasaki:

• Mule 2510 4x4 (2000)
• Mule 2510 Diesel (2000-2002)
• Mule 3010 4x4 (2001-2008)
• Mule 3010 Diesel (2001-2008)
• Mule 4010 4x4 (2009-2018)
• Mule 4010 4x4 Diesel (2009-2013)
• Mule 610 4x4 (2005-2016)
• Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
• Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)
• Teryx 750 4x4 (2008-2013)

Rear Drive Shaft - Differential Side (Ref 5):

Kawasaki:

• Mule 610 4x4 (2005-2016)
• Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
• Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)

Rear Drive Shaft - Engine Side (Ref 4):

Kawasaki:

• KVF300A Prairie 4x4 (1999-2002)
• KVF300B Prairie 2x4 (1999-2002)
• KVF400A Prairie 4x4 (1997-1998)
• KVF400B Prairie (1998)
• KVF400C Prairie 4x4 (1999-2002)
• KVF400D Prairie (1999-2002)
• Mule 610 4x4 (2005-2016)
• Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
• Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)

Cross Reference Numbers:

• AllBalls: 19-1002
• Moto Master: ATV702

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
