CARB INTAKE YAMAHA YFZ350 87-06, RD350/RZ350 Carburetor Rubber 31K-13565-01

Intake Carb Flange / Holders Kit

Features:

• Cracked and leaking intake carb holders? Here's the cure!
• Sold as kit in the image.
• Color: Black & Dark Grey.
• Material: Metal, Rubber, and Paper.
• Easy to install but if unsure, please use a professional.

Size:

• Intake Manifolds: approx. 7.1 x 6.7 x 4.7cm (2.80 x 2.64 x 1.85 inch) (L x W x H).
• Intake Gaskets: approx. 7.1 x 6.7cm (2.80 x 2.64 inch) (L x W).
• Intake Inner Diameter: 34mm.
• Intake Outer Diameter: 44mm.
• Mounting Hole Distance: 48mm/58mm.
• Please see pictures for more detailed measurements.

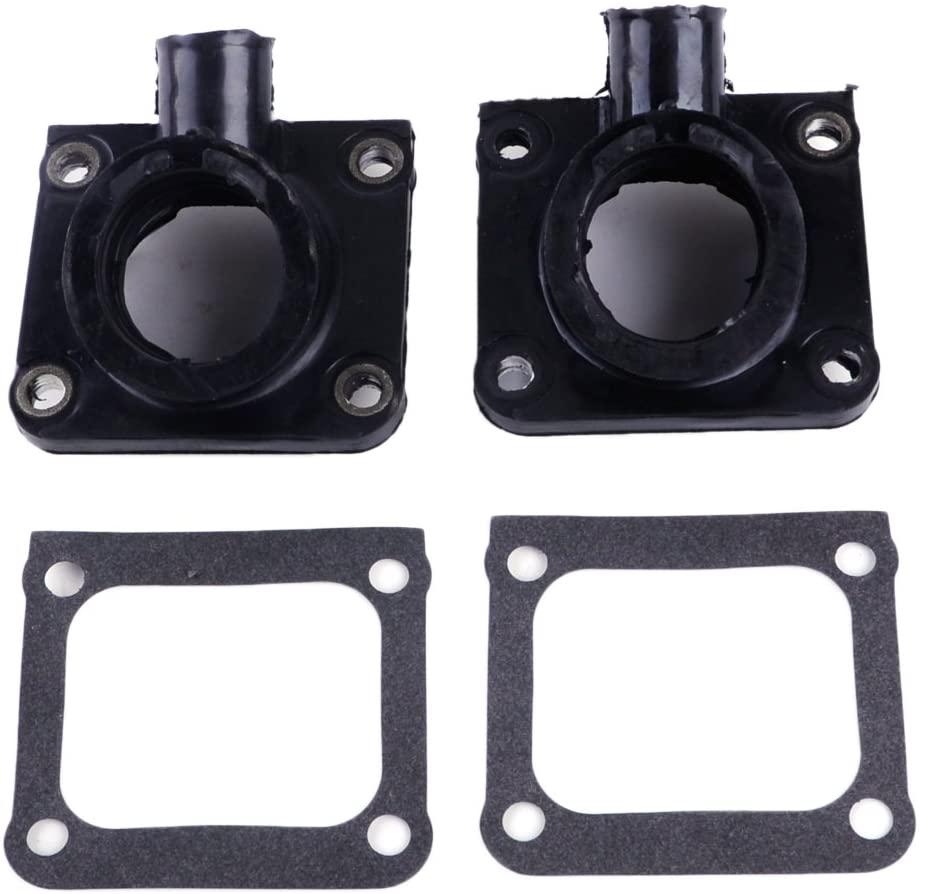

Kit Includes:

• 2 x Intake Manifolds
• 2 x Intake Gaskets
• 2 x Carb Flanges/Holders
• 2 x Reed Valve Gaskets

Cross Reference Numbers:

• K&L 11-4221
• QTY 2 x 31K-13565-01-00 Carb Flanges/Holders
• QTY 2 x 3GC-13621-00-00 Reed Valve Gaskets
• QTY 4 x 98580-03008-00 Pan Head Screws
• QTY 4 x 92990-03100-00 Spring Washers
• QTY 8 x 91316-06025-00 Carb Holder Bolts
• 31K-13565-01-00

Applicable Models:

Yamaha:

• YFZ350 Banshee 1987-2005
• RD350LC 1981-1982
• RZ350L/LC/N/NCII 1984-1985

Detailed Model Fitment:

• 1984 RZ350L - Air Filter
• 1985 RZ350N - Air Filter
• 1985 RZ350NC - Air Filter
• 1985 RZ350NCII - Air Filter
• 1987 YFZ350T - Air Filter
• 1988 BANSHEE (YFZ350U) - Air Filter
• 1989 BANSHEE (YFZ350W) - Air Filter
• 1990 BANSHEE (YFZ350A) - Air Filter
• 1991 BANSHEE (YFZ350B_MN) - Air Filter
• 1992 YFZ350D - Air Filter
• 1992 BANSHEE (YFZ350D_MN) - Air Filter
• 1993 BANSHEE (YFZ350E) - Air Filter
• 1993 BANSHEE (YFZ350E_MN) - Air Filter
• 1994 BANSHEE (YFZ350F) - Intake
• 1994 BANSHEE (YFZ350F_MN) - Intake
• 1995 BANSHEE (YFZ350G) - Intake
• 1995 BANSHEE (YFZ350G_MN) - Intake
• 1996 BANSHEE (YFZ350H) - Intake
• 1996 BANSHEE (YFZ350H_MN) - Intake
• 1997 BANSHEE (YFZ350J) - Intake
• 1997 BANSHEE (YFZ350J_MN) - Intake
• 1998 BANSHEE (YFZ350K) - Intake
• 1999 BANSHEE (YFZ350L) - Intake
• 2000 BANSHEE (YFZ350M) - Intake
• 2001 BANSHEE (YFZ350N) - Intake
• 2002 BANSHEE (YFZ350P) - Intake
• 2003 BANSHEE (YFZ350R) - Intake
• 2003 BANSHEE LE (YFZ350LER) - Intake
• 2004 BANSHEE (YFZ350S) - Intake
• 2004 BANSHEE - LIMITED EDITION BLACK (YFZ350LES) - Intake
• 2005 BANSHEE (YFZ350T) - Intake
• 2005 BANSHEE SE (YFZ350SET) - Intake
• 2006 BANSHEE (YFZ350V) - Intake
• 2006 BANSHEE SE (YFZ350SEV) - Intake
• 2006 BANSHEE SP (YFZ350SPV) - Intake

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
