WORKSHOP DIY KIT THROTTLE, VENHILL VWK003 UNIVERSAL CABLE

UNIVERSAL
Workshop throttle cable repair kit

VENHILL VWK003 BLACK THROTTLE CABLE KIT.

- Made in United Kingdom.
- All Venhill throttle cables have a PTFE Teflon liner in the conduit, for reduced friction and heat resistance, which allows a very smooth operating action.
- Inner wire is multi strand for flexibility and strength.
- Venhill Featherlight cables.

Part No. 14-904.VH

Typical application: motorcycle throttle cables. Supplied with 5 metres of conduit, with a black PVC cover. The conduit is supplied with 5 meters of low friction Teflon liner, already fitted in the outer conduit and 5 meters of 1.5mm o.d inner wire. A range of nipples and high quality fittings are included. The ferrules

and bends are a snug fit on the conduit. They can be bonded in place during the assembly or retained with a small centre punch indentation to their side. The fittings can be adapted for a range of models. There are enough fittings in the kit to make at least five lines. Additional fittings, conduit and wire can be purchased separately as required. You will need a basic soldering kit to solder the nipples in place. Check our Resources section for instructions on making up your cable. 5m of inner and outer cable, nylon liner and sufficient fittings for several cables. Ideal for the active
workshop servicing a wide range of customer needs.

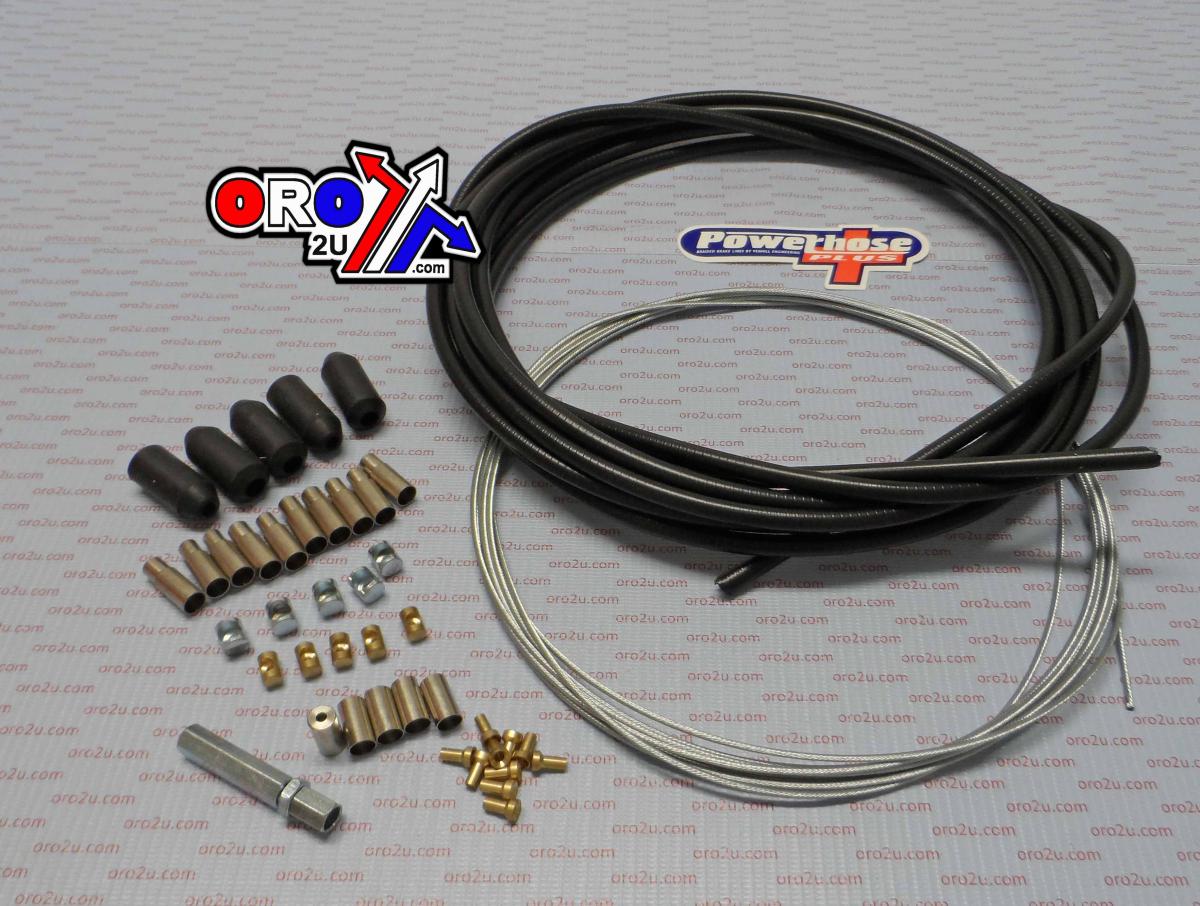

Components included
LB1NS 5mm [5MM CONDUIT W/TEFLON LINER] 5 METERS
R77/1 1.5mm [1.5MM 7X7 GALVANISED WIRE ROPE] 5 METERS
10 x F2B  [FERRULE FOR LB1TS CONDUIT 6.3MM O.D]
10 x M5931 [NEOPRENE BOOT 8MM I.D.]
1 x A675B  [MIDWAY ADJUSTER, THREAD 20MM LONG]
20 x EE7 [CARBURETTOR NIPPLE 3MM O.D. X 3MM]
20 x F1   [FERRULE FOR LB1TS CONDUIT 5.5MM O.D.]
2 x M6902  [NEOPRENE TAPERED BOOT I/D 10 & 4.5MM]
5 x BN575/55  [BARREL NIPPLE 6MM O.D. X 5MM (1.9MM)]

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
