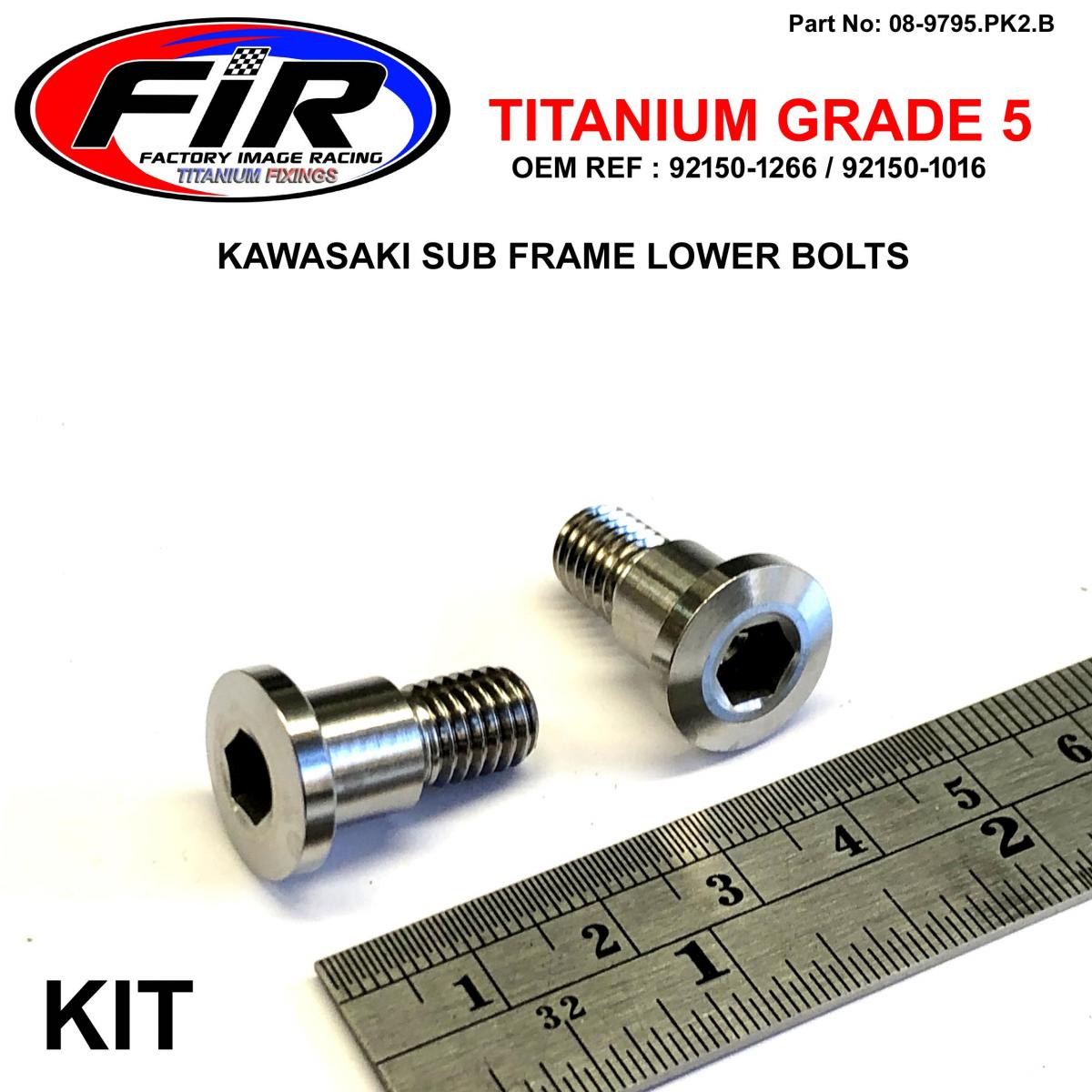

GR5 SUB FRAME LOWER BOLT KX, ALLEN STEP BOLT M8x19mm, 92150-1266, 92150-1016

TITANIUM GRADE 5 SUB FRAME BOLTS

• BOLT B
• Material: Grade 5 (6Al/4V)
• M8x1.25mm
• Thread D : � M8
• Pitch : 1.25mm

• Overall length L: 19.10mm
• Thread length : 10.00mm

• Allen HEX: #6mm

• Flange OD:15.00mm
• Boss OD: 9.96mm
• Boss L: 8.00mm

• Qty : 2
• OEM Ref : � 92150-1266 / � 921501266 / 92150-1016

�

CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

FITMENT:

� � � 1988 KX125 (KX125-F1) - Frame
� � � 1988 KX250 (KX250-F1) - Frame
� � � 1988 KX500 (KX500-D1) - Frame
� � � 1989 KX125 (KX125-G1) - Frame
� � � 1989 KX250 (KX250-G1) - Frame
� � � 1989 KX500 (KX500-E1) - Frame
� � � 1990 KX125 (KX125-H1) - Frame
� � � 1990 KX250 (KX250-H1) - Frame
� � � 1990 KX500 (KX500-E2) - Frame
� � � 1991 KX125 (KX125-H2) - Frame
� � � 1991 KX250 (KX250-H2) - Frame
� � � 1991 KX500 (KX500-E3) - Frame
� � � 1992 KX125 (KX125-J1) - Frame
� � � 1992 KX250 (KX250-J1) - Frame
� � � 1992 KX500 (KX500-E4) - Frame
� � � 1993 KX125 (KX125-J2) - Frame
� � � 1993 KX250 (KX250-J2) - Frame
� � � 1993 KX500 (KX500-E5) - Frame
� � � 1994 KX500 (KX500-E6) - Frame
� � � 1995 KX500 (KX500-E7) - Frame
� � � 1996 KX500 (KX500-E8) - Frame
� � � 1997 KX500 (KX500-E9) - Frame
� � � 1998 KX500 (KX500-E10) - Frame
� � � 1999 KX500 (KX500-E11) - Frame
� � � 2000 KX500 (KX500-E12) - Frame
� � � 2001 KX500 (KX500-E13) - Frame
� � � 2002 KX500 (KX500-E14) - Frame
� � � 2003 KX500 (KX500-E15) - Frame
� � � 2004 KX500 (KX500-E16) - Frame

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
