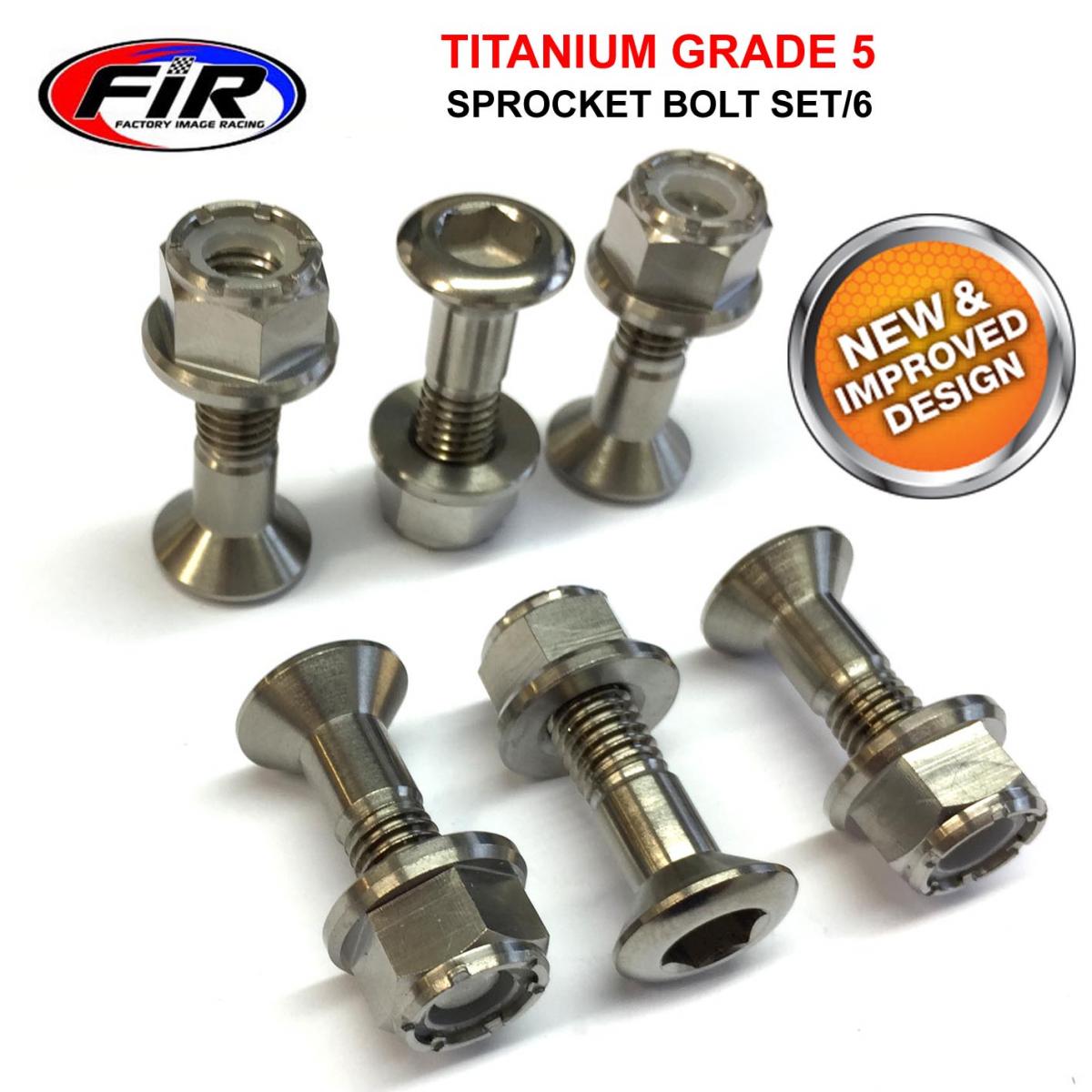

TITANIUM GR5 SPROCKET BOLT SET/6, M8x30 STANDARD SPROCKET BOLTS

Factory Image Racing> Giving your machine the Factory look!

TITANIUM GRADE 5 SPROCKET BOLT SET OF 6

M8x30 STANDARD SPROCKET BOLTS

BOLT INFORMATION

• BOLT QTY: 6 �
• Material: Grade 5 (6Al/4V)
• Thread D : � M8

• Pitch P : � 1.25mm
• Overall length L: 31.50mm
• CSK head L : 6.00mm

• Shank length : 10.00mm
• Thread length : 15.00mm
• Head Allen: 8mm Allen key


�NUT INFORMATION

• NUT QTY: 6
• Material: Grade 5 (6Al/4V)
• Thread D : � M8

• Pitch P : � 1.25mm
• Overall height: 10.50mm
• Flange OD: 17.00mm
• Head HEX: 13mm Spanner Size

• Lock type : White Nylon


�

�CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

Part No. 08-9602.30.KIT

Cross reference numbers > 08-370.T.CHROME / 08-370_MP / 33-1400

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
